MX0109A InfiniiMax III extreme temperature solder-in probe, 26 GHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（MX0109A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
MX0109A 的技术参考
产品概览
Features

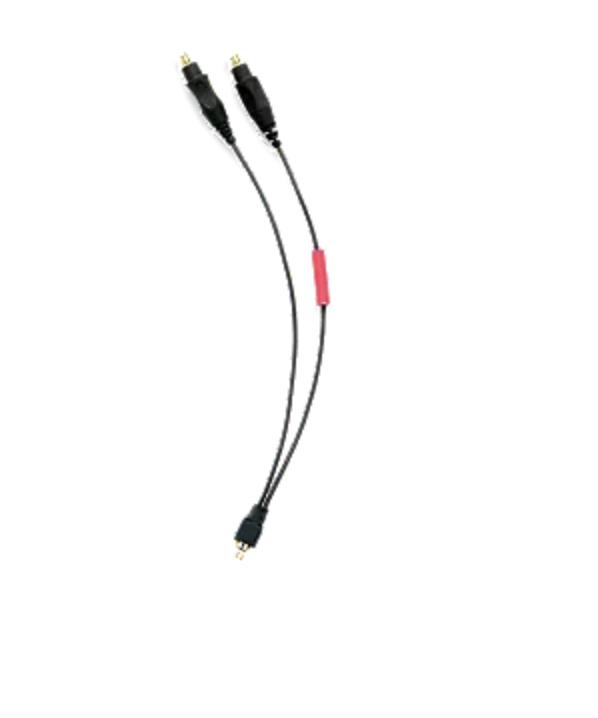

The Keysight MX0109A InfiniiMax III extreme temperature solder-in probe is a semi-permanent solder-in connection that provides system bandwidth up to 26 GHz. For extended temperature testing, the MX0109A is capable of supporting extreme operating temperatures from -55 °C to +150 °C per the JEDEC JESD22-A104 Rev. E standard, making it ideal for testing electronic circuits and devices in environmental chambers.
It is compatible with InfiniiMax III and III+ probe amplifiers.
The 130 Ω axial resistor on the tip of the MX0109A ZIF probe is replaceable if it becomes worn or damaged.
The N2836-68701 is a replacement axial resistor kit for the MX0109A, N2836A, and N2838A. Each resistor kit contains 10 resistors.
Operating temperature characteristics:
Minimum 1,000 hours dwell time at -55 °C
Minimum 1,000 hours dwell time at +150 °C
Supports a minimum of 750 cycles from -55 °C to 150 °C as specified in the JEDEC JESD22-A104 Rev. E standard
Extend the cable length in your environmental chamber with the N5450B Extreme Temperature Extension Cable.
Main features
26 GHz bandwidth (using InfiniiMax III N2803A amplifier)
Cdiff = 108 fF，Cse = 140 fF
100 kΩ input Rdiff (DC), 1 kΩ input Rdiff (> 10 kHz)
6:1 attenuation ratio, nominal sensitivity
5 mil – 250 mil (or 0.127 mm – 6.35 mm) variable pitch
Note: MX0109A is a replacement for N2836A. Both probes are compatible with each other in form, size and function.
面向最新接口标准的设计与调试，MX0109A InfiniiMax III extreme temperature solder-in probe, 26 GHz 提供行业领先的精度与信号完整性。
