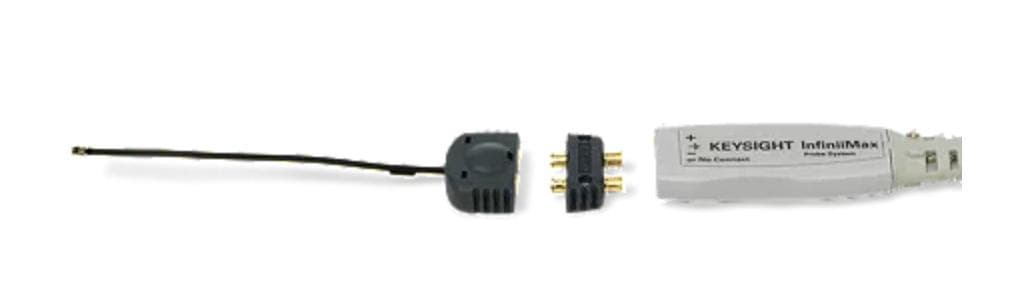

MX0100A InfiniiMax II Micro Probe Kit
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（MX0100A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
MX0100A 的技术参考
产品概览
Features
Less than half the size of existing solder-in probes
Flexible printed circuits, making them flat and flexible
25 GHz bandwidth when used with MX0023A, 12 GHz bandwidth when used with 1169B
Small probe loading effect - 0.17 pF
reusable
Comes with 5 probes, 1 bullet adapter, and 1 4 mil coil (Option 001)
Compatible with InfiniiMax I/II probe amplifiers
Operating temperature characteristics
o Minimum 1000 hours dwell time at -55°C
o Minimum 1000 hours dwell time at +150°C
o Supports a minimum of 1000 cycles from -55°C to 150°C as specified in the JEDEC JESD22-A104 Rev. E standard
The MX0100A is an ultra-small, ultra-high performance solder-in probe optimized for probing modern high-speed devices. It is a miniature solder-in probe for use with Keysight InfiniiMax I and II probe amplifiers for probing small target devices. The probe is made of flexible printed circuits, which is very light, flexible and compact. It is not only easy to use, but can also be reused many times. The MX0100A’s solderable leads ensure a secure connection to the device under test. The 4-mil diameter wire can be bent to accommodate targets spaced between 0 and 7 mm.
For extended temperature testing, the MX0100A is capable of supporting extreme operating temperatures from -55 °C to +150 °C as specified in the JEDEC JESD22-A104 Rev. E standard, making it ideal for testing electronic circuits and devices in environmental chambers.
面向最新接口标准的设计与调试，MX0100A InfiniiMax II Micro Probe Kit 提供行业领先的精度与信号完整性。
