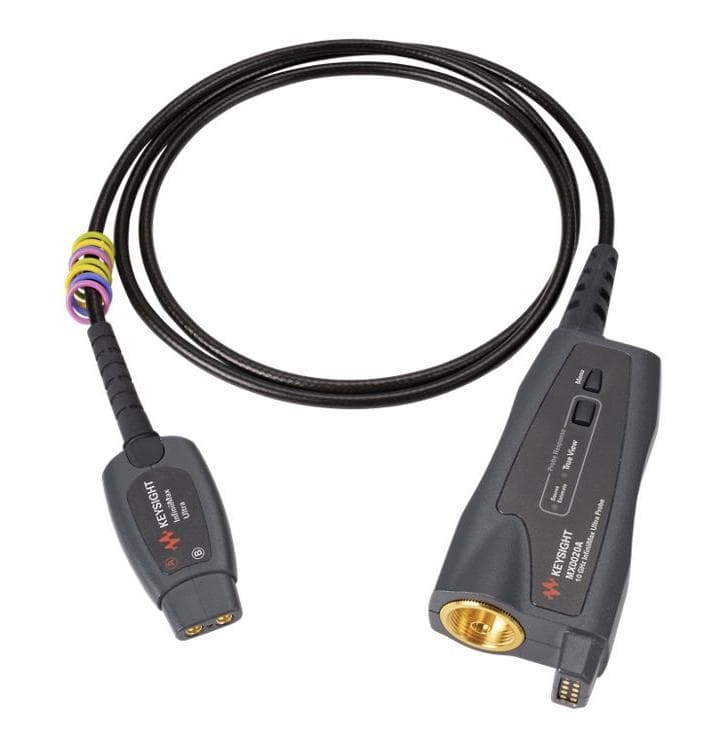

MX0020A InfiniiMax Ultra probe amplifier, 10 GHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（MX0020A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
MX0020A 的技术参考
产品概览
Features
Test and validate high-speed technology with a 10 GHz probe amplifier (AP2).
Experience the highest input impedance in mid-frequency low energy detection.
Improve test margin with the lowest signal attenuation rate.
Probe small components with ultra-flexible micro probe heads, or choose from the widest range of compatible probe heads based on your application.
Measure differential, single-ended and common-mode signals with a single probe.
Use with Infiniium UXR, 90000 X, Q, V and Z Series oscilloscopes.
Keysight's MX0020A InfiniiMax Ultra Series probe amplifiers increase usability by measuring differential, single-ended and common-mode signals with a single probe.
When a probe is used to connect a signal to an oscilloscope, it becomes part of the circuit that affects the test. Probes may hide signal details, load the signal, or distort the signal. InfiniiMax Ultra Series probes have the lowest loading and minimal impact on the circuit. Improve test margins and gain measurement confidence with unparalleled accuracy. Make sure your entire measurement system helps you see the truest representation of your signal.
These probes achieve the lowest noise and capacitive loading, and due to their RC high impedance nature, lowest loading over a wider frequency range. The InfiniiMax Ultra series supports InfiniiMode with user-defined AC calibration modes, wider input voltage range, higher accuracy (achieved through unique S-parameter characterization), lower capacitive loading, wider input voltage range, micro/socketable probe heads for smaller density probing, and more bandwidth. The InfiniiMax Ultra Series uses an RC input impedance structure for lowest loading and least signal distortion over the widest frequency range.
InfiniiMax Ultra probes are available in three attenuation ranges—1:1, 4:1, and 8:1—providing excellent noise performance and a large voltage range while maintaining maximum bandwidth. The input range is automatically configured based on the size of the input signal and the vertical scale of the oscilloscope.
Flexible selection of three input dynamic ranges: 600 mVpp at 1:1, 2.5 Vpp at 4:1, and 5 Vpp at 8:1. With InfiniiMax Ultra Series probes, you can clearly see and know when your design reaches a satisfactory, standards-compliant state that enables easy probing of small devices and reduced test complexity.
面向最新接口标准的设计与调试，MX0020A InfiniiMax Ultra probe amplifier, 10 GHz 提供行业领先的精度与信号完整性。
