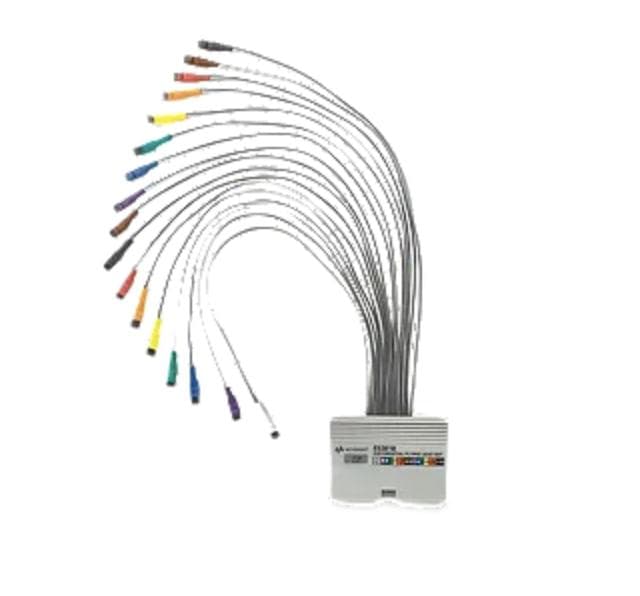

E5381B Differential flying leads with 90-pin cable connector
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（E5381B）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
E5381B 的技术参考
产品概览
Features
signal access
17 channels: 16 single-ended or differential data channels, 1 single-ended or differential clock channel
Probe performance
0.9 pF equivalent load capacitance
1.5 Gb/s maximum data rate
Capable of measuring signals with peak-to-peak signal amplitudes as low as 200 mV
connectivity
Accessories provided to assist in connecting to IC pins, traces, pads and vias
Can collect signals from random parts of the target
compatible:
Logic analyzer with 90-pin cable connector
Provides a wealth of accessories that can significantly increase detection flexibility
If the detection points are scattered on the target or there are no detection points designed, you can use the E5381B flying line kit. The probe comes with a wide range of high-performance accessories that allow it to be connected to native connectors or soldered to surface mount components, vias, pads, traces and other PC board components. This probe works with a variety of Keysight logic analyzers equipped with a 90-pin cable connector.
The functions and basic technical specifications of E5381B are the same as those of E5381A differential flying lead.
面向最新接口标准的设计与调试，E5381B Differential flying leads with 90-pin cable connector 提供行业领先的精度与信号完整性。
