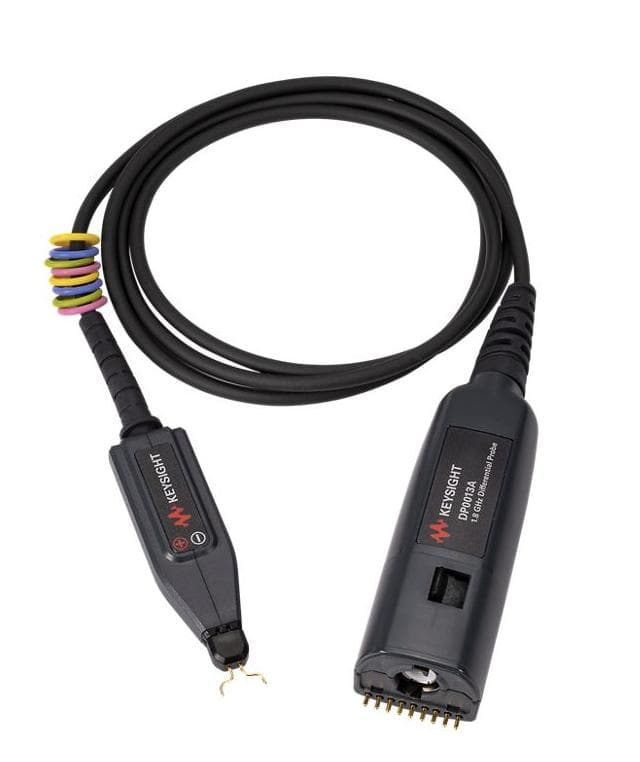

DP0013A DifferentialActiveProbe, 1.7 GHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（Keysight）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
Keysight 的技术参考
| Bandwidth | 1700 |
产品概览
Keysight DP0013A is a member of the DP001xA series of DifferentialActiveProbes with 1.7 GHz bandwidth. These Probes can provide excellent general-purpose DifferentialSignalsMeasurement for today's various high-speed power-related Measurements (Such as Motor drives, automotive Differential bus Measurements and high-speed digital system designs).
Bandwidth: 1.7 GHz
Maximum Differential range (DC and AC peak): ±42 V
Maximum Differential range is ±4.2 V at 17:1 auto-attenuation range
Maximum Differential range is ±42 V at 85:1 auto-attenuation range
Input impedance: 1.7 MΩ / 1.5 pF
Cable length: 1.3 meters
Compatible Oscilloscopes
Keysight InfiniiVision 3000T X, 4000 X and 6000 X Series
Keysight Infiniium EXR, MXR and S Series
Keysight Infiniium UXR, V, Z, Q and 90000 X series, requires Using Keysight N5442A Adapter
Each DP0013A Series DifferentialActiveProbe is shipped in a hard plastic carrying case and comes with the following standard accessories:
One pair of jacked Y-wires (2 pieces)
One pair of solder-in Y-wires (2 pieces)
90o ground wire with jack (1 piece)
Micro Circuit Hook Test Clips (2 pcs.)
Adjustable spot test Probe (2 pieces)
Probe storage box (2 pieces)
Cylindrical pins (10 pcs.)
面向最新接口标准的设计与调试，DP0013A DifferentialActiveProbe, 1.7 GHz 提供行业领先的精度与信号完整性。
