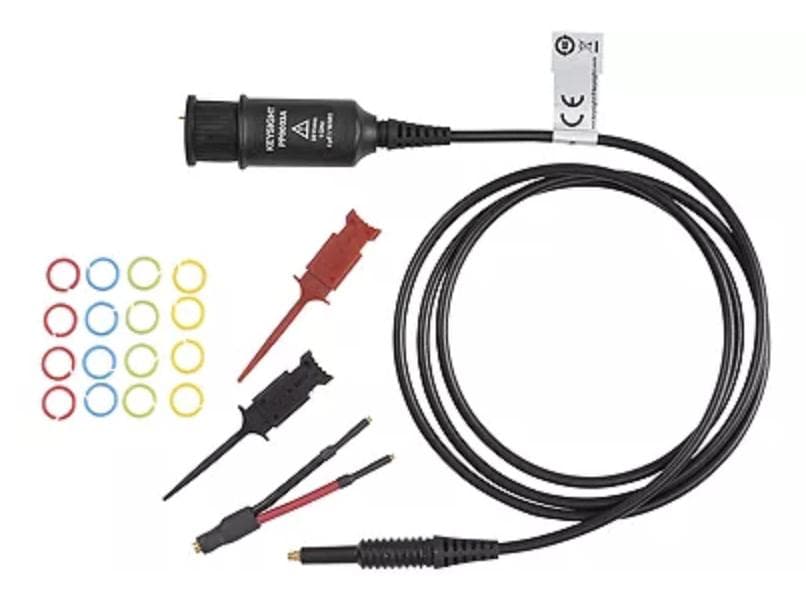

PP0003A High ImpedanceProbe

PP0003A is Keysight's first Compatible MMCX PassiveProbe with an analog bandwidth up to 1 GHz and a capacitive load of less than 4 pF. It maintains the simplicity and ease of use of PassiveProbe, and its performance is comparable to ActiveProbe. The AutoProbe Type I Interface provides biasing capabilities and can automatically configure Probe type and attenuation settings. PP0003A has the following Features:
1 GHz analog bandwidth (<4 pF 输入电容)
Capable of withstanding 30 Vrms CAT II input Voltage and up to 42.4 V peak transient voltage
10 MΩ input impedance in low frequency range
Compatible AutoProbe Type I Interface
1.3 meter long cable, easy to use
Small 5 mm probe and compact Probe design facilitate detection of smaller targets
Variable attenuation, automatically configured by Oscilloscopes
Rigid probe enables secure connection with the device under test
PP0003A is connected to the AutoProbe Type I Interface on InfiniVision and Infinium Oscilloscopes through the PP0004A Adapter, and cooperates with Measurement. PP0001A/2A/3A Probe is a new generation of High ImpedanceProbe, regarded as a combination of "Probe and ProbeAdapter (PP0004A)". This combination does not have a fixed attenuation ratio, but is based on the specified volts/division (V/div) settings provide multiple available attenuation ratios to accommodate a wide dynamic range and maintain a flat frequency response.
