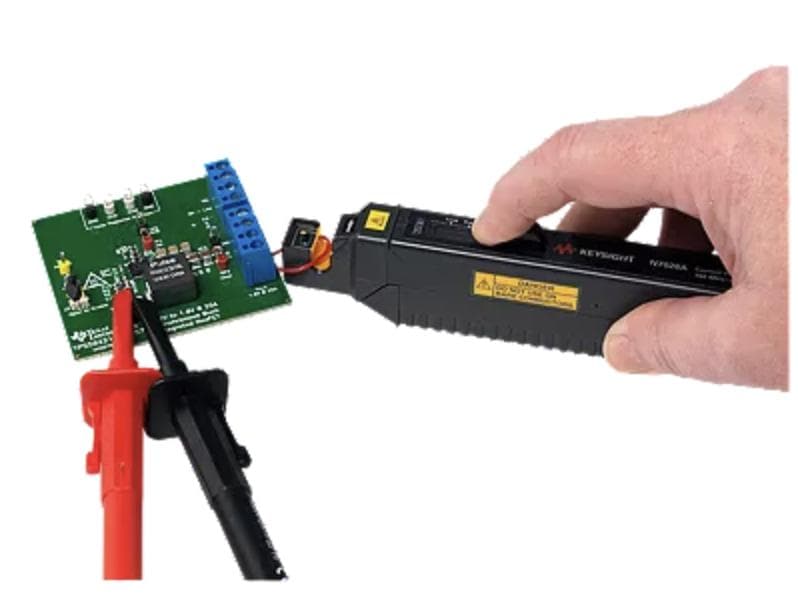

N7026A AC/DC High Sensitivity Clamp Current Probe, 150 MHz
面向高阶调试的专业级示波器
渠道分销
快速响应
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
适用场景： 电力电子
关键参数
耐压等级带宽爬电间距
- 高压探头（N7026A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N7026A 的技术参考
产品概览
Features
Large bandwidth: DC to 150 MHz
High sensitivity: as low as 1 mA/div
High signal-to-noise ratio for lower current measurements
Using external AC adapter: 40 Apeak discontinuous, 30 ADC, 30 Arms continuous
Without external AC adapter: 15 Apeak discontinuous, 5 ADC, 5 Arms continuous
Degaussing and offset calibration buttons on probe simplify operation
Compatible with high-impedance AutoProbe interfaces
The Keysight N7026A is a 150 MHz bandwidth active current probe for InfiniiVision and Infiniium oscilloscopes. The probe has a large, flat bandwidth (dc to 150 MHz), low noise (<250 μArms）以及宽输入范围（高达 30Arms 连续电流或 40Apeak 非连续电流）。 其测量灵敏度低至 1mA/div，让您能够更精确地看到低电平信号。
For accurate measurements using clamp-on current probes, degaussing and eliminating offset errors is critical. Degaussing and calibration buttons on the probe quickly and easily remove any residual magnetism and unwanted DC offset. The probe can be powered directly from the InfiniiVision and Infiniium AutoProbe interfaces (when measuring currents up to 15Apeak), or via an external AC adapter (when measuring currents up to 40Apeak).
The N7026A is ideal for capturing transient current signals such as those produced by high-frequency digital circuits, ICs, motor controllers, switching power supplies, inverters, and current amplifiers driving inductive loads.
Large bandwidth: DC to 150 MHz
High sensitivity: as low as 1 mA/div
High signal-to-noise ratio for lower current measurements
Using external AC adapter: 40 Apeak discontinuous, 30 ADC, 30 Arms continuous
Without external AC adapter: 15 Apeak discontinuous, 5 ADC, 5 Arms continuous
Degaussing and offset calibration buttons on probe simplify operation
Compatible with high-impedance AutoProbe interfaces
The Keysight N7026A is a 150 MHz bandwidth active current probe for InfiniiVision and Infiniium oscilloscopes. The probe has a large, flat bandwidth (dc to 150 MHz), low noise (<250 μArms）以及宽输入范围（高达 30Arms 连续电流或 40Apeak 非连续电流）。 其测量灵敏度低至 1mA/div，让您能够更精确地看到低电平信号。
For accurate measurements using clamp-on current probes, degaussing and eliminating offset errors is critical. Degaussing and calibration buttons on the probe quickly and easily remove any residual magnetism and unwanted DC offset. The probe can be powered directly from the InfiniiVision and Infiniium AutoProbe interfaces (when measuring currents up to 15Apeak), or via an external AC adapter (when measuring currents up to 40Apeak).
The N7026A is ideal for capturing transient current signals such as those produced by high-frequency digital circuits, ICs, motor controllers, switching power supplies, inverters, and current amplifiers driving inductive loads.
面向最新接口标准的设计与调试，N7026A AC/DC High Sensitivity Clamp Current Probe, 150 MHz 提供行业领先的精度与信号完整性。
