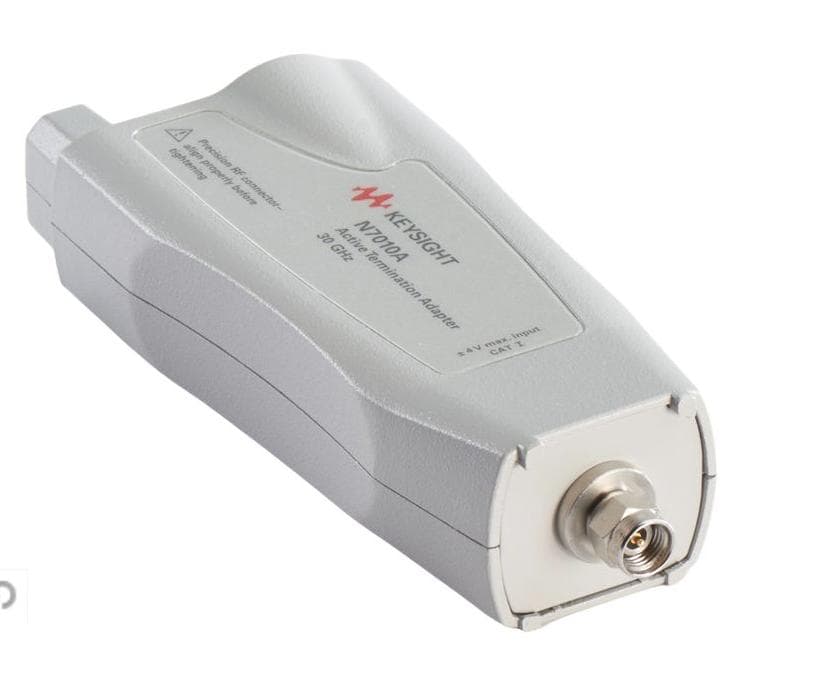

N7010A Active Termination Adapter, 30 GHz
Features
30 GHz single-ended Active termination Adapter, supports 2.92 mm/3.5 mm/SMA cable input
Low attenuation ratio (1.16:1)Suitable for high SNR, low noise Measurement
Ability to terminate Signals to 50Ω ungrounded Voltage (VTERM)
Keysight N7010A Active Termination Adapter is a 30 GHz single-ended adapter with user-adjustable common termination voltage (VTERM) and ultra-low noise.
This Adapter is suitable for applications such as HDMI 2.0, DisplayPort and MIPI M-PHY Gear 3/4. Oscilloscopes can internally control the termination Voltage to maintain it between -4.0 V and +4.0 V. This Adapter uses a low attenuation ratio setting (1.16:1) for an extremely low noise floor.
This Adapter is compatible with Infiniium UXR, 90000 Q Series, Z Series and V Series Oscilloscopes with software version 5.30 or higher, and Infiniium 90000 X Series Oscilloscopes with software version 5.50.0030 or higher. (Auto Probe III Interface requires Using N2852A. )
Features
30 GHz single-ended Active termination Adapter, supports 2.92 mm/3.5 mm/SMA cable input
Low attenuation ratio (1.16:1)Suitable for high SNR, low noise Measurement
Ability to terminate Signals to 50Ω ungrounded Voltage (VTERM)
Keysight N7010A Active Termination Adapter is a 30 GHz single-ended adapter with user-adjustable common termination voltage (VTERM) and ultra-low noise.
This Adapter is suitable for applications such as HDMI 2.0, DisplayPort and MIPI M-PHY Gear 3/4. Oscilloscopes can internally control the termination Voltage to maintain it between -4.0 V and +4.0 V. This Adapter uses a low attenuation ratio setting (1.16:1) for an extremely low noise floor.
This Adapter is compatible with Infiniium UXR, 90000 Q Series, Z Series and V Series Oscilloscopes with software version 5.30 or higher, and Infiniium 90000 X Series Oscilloscopes with software version 5.50.0030 or higher. (Auto Probe III Interface requires Using N2852A. )
面向最新接口标准的设计与调试，N7010A Active Termination Adapter, 30 GHz 提供行业领先的精度与信号完整性。
