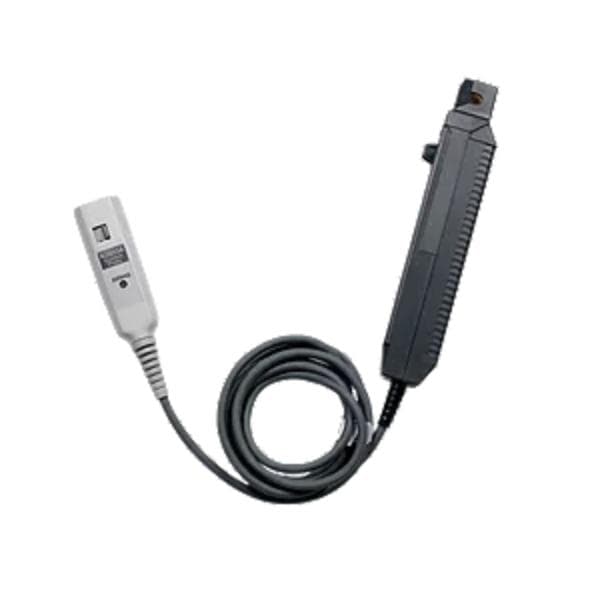

N2893A AC/DC current probe, 100 MHz, 15A
面向高阶调试的专业级示波器
渠道分销
快速响应
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
适用场景： 电力电子
关键参数
耐压等级带宽爬电间距
- 高压探头（N2893A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N2893A 的技术参考
产品概览
Features
Large bandwidth: DC to 100 MHz
High signal-to-noise ratio, small current measurement capability
15A peak, 15A DC, 10Arms continuous, 30A peak discontinuous current
Protection features easily protect against excessive input
Automatic demagnetization (degaussing) and calibration features remove residual magnetism and unwanted DC offset in the probe
Compatible with high-impedance AutoProbe interfaces
When used with the 80000/90000 Series, the N278xA current probe should be used with the N2779A power supply and the E2697A high impedance adapter
When used with the 90000 X-Series, use the N5449A high-impedance probe adapter
The Keysight N2893A is a 100 MHz bandwidth active current probe for InfiniiVision and Infiniium oscilloscopes. This probe features flat bandwidth (dc to 100 MHz), low noise (<2.5 mA rms）和低电路插入损耗。 自动退磁（消磁）和校准功能可去除探头中的剩余磁性和多余的直流偏置。 探头由 InfiniiVision 和 Infiniium 示波器的 Autoprobe 接口直接供电，无需使用额外电源。
The N2893A is ideal for capturing transient current signals in devices such as motor controllers, switching power supplies, inverters, and current amplifiers driving inductive loads.
Large bandwidth: DC to 100 MHz
High signal-to-noise ratio, small current measurement capability
15A peak, 15A DC, 10Arms continuous, 30A peak discontinuous current
Protection features easily protect against excessive input
Automatic demagnetization (degaussing) and calibration features remove residual magnetism and unwanted DC offset in the probe
Compatible with high-impedance AutoProbe interfaces
When used with the 80000/90000 Series, the N278xA current probe should be used with the N2779A power supply and the E2697A high impedance adapter
When used with the 90000 X-Series, use the N5449A high-impedance probe adapter
The Keysight N2893A is a 100 MHz bandwidth active current probe for InfiniiVision and Infiniium oscilloscopes. This probe features flat bandwidth (dc to 100 MHz), low noise (<2.5 mA rms）和低电路插入损耗。 自动退磁（消磁）和校准功能可去除探头中的剩余磁性和多余的直流偏置。 探头由 InfiniiVision 和 Infiniium 示波器的 Autoprobe 接口直接供电，无需使用额外电源。
The N2893A is ideal for capturing transient current signals in devices such as motor controllers, switching power supplies, inverters, and current amplifiers driving inductive loads.
面向最新接口标准的设计与调试，N2893A AC/DC current probe, 100 MHz, 15A 提供行业领先的精度与信号完整性。
