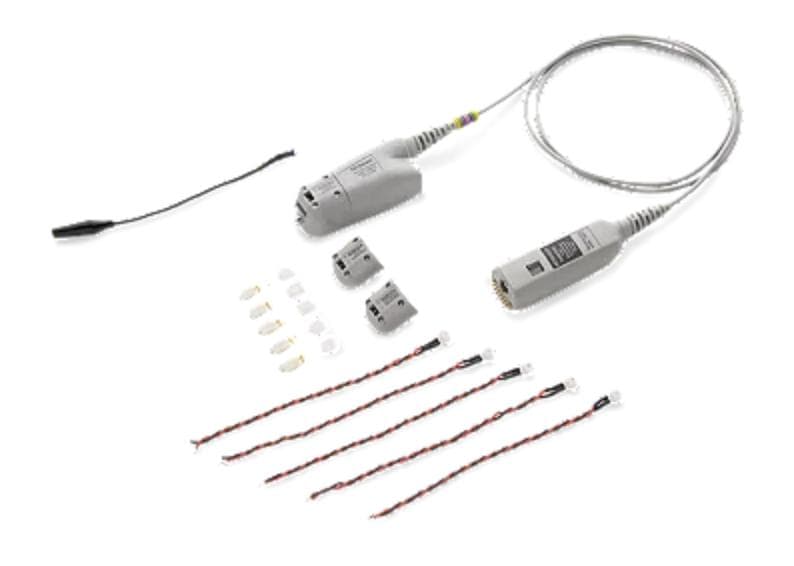

N2821A High Sensitivity AC/DC Current Probe (1 Channel), 3 MHz, 50 uA
面向高阶调试的专业级示波器
渠道分销
快速响应
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
适用场景： 电力电子
关键参数
耐压等级带宽爬电间距
- 高压探头（N2821A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N2821A 的技术参考
产品概览
Features
Highest sensitivity in the industry
Lower current range is 50 uA
Current range upper limit is 5 A
Normal dynamic range is >1,000:1 or 60 dB
bandwidth
- 3 MHz - reduced channel
- 500 kHz - amplified channel
Overview of the overall situation and insight into the details
Ideal for capturing and analyzing low-level currents in a device under test to characterize subcircuits or to measure the current consumption of wireless battery-powered devices or integrated circuits
Make normal dynamic range measurements using selectable high-gain or low-gain views of the current waveform
Probe accessories can be included with the probe or ordered separately: replaceable sensor head, MBB socket, connectors and connection cables
As modern battery-powered devices and integrated circuits become more environmentally friendly and energy-efficient, there is an increasing need for high-sensitivity, low-level current measurements to ensure that the current consumption of these devices is within allowable limits. The N2821A high sensitivity probe is designed to make high dynamic range, high sensitivity measurements to meet today's challenging current measurement needs.
The ultra-sensitive N2821A AC/DC current probe supports measurements from 50 uA to 5 A on Keysight oscilloscopes. The N2821A interface uses a make-before-break (MBB) connector, allowing you to quickly probe multiple locations on the device under test without soldering or soldering leads.
The N2820A dual-channel current probe connects to two oscilloscope channels to provide simultaneous low-gain and high-gain views for wider dynamic range measurements, while the N2821A single-channel current probe offers only one user-selectable view at a time.
Combine with Infiniium S-Series HD oscilloscopes for the ultimate high-sensitivity measurement solution. Using the area under the curve measurement (charge) on the Infiniium oscilloscope, you can easily calculate the integrated current draw in coulombs over time.
Highest sensitivity in the industry
Lower current range is 50 uA
Current range upper limit is 5 A
Normal dynamic range is >1,000:1 or 60 dB
bandwidth
- 3 MHz - reduced channel
- 500 kHz - amplified channel
Overview of the overall situation and insight into the details
Ideal for capturing and analyzing low-level currents in a device under test to characterize subcircuits or to measure the current consumption of wireless battery-powered devices or integrated circuits
Make normal dynamic range measurements using selectable high-gain or low-gain views of the current waveform
Probe accessories can be included with the probe or ordered separately: replaceable sensor head, MBB socket, connectors and connection cables
As modern battery-powered devices and integrated circuits become more environmentally friendly and energy-efficient, there is an increasing need for high-sensitivity, low-level current measurements to ensure that the current consumption of these devices is within allowable limits. The N2821A high sensitivity probe is designed to make high dynamic range, high sensitivity measurements to meet today's challenging current measurement needs.
The ultra-sensitive N2821A AC/DC current probe supports measurements from 50 uA to 5 A on Keysight oscilloscopes. The N2821A interface uses a make-before-break (MBB) connector, allowing you to quickly probe multiple locations on the device under test without soldering or soldering leads.
The N2820A dual-channel current probe connects to two oscilloscope channels to provide simultaneous low-gain and high-gain views for wider dynamic range measurements, while the N2821A single-channel current probe offers only one user-selectable view at a time.
Combine with Infiniium S-Series HD oscilloscopes for the ultimate high-sensitivity measurement solution. Using the area under the curve measurement (charge) on the Infiniium oscilloscope, you can easily calculate the integrated current draw in coulombs over time.
面向最新接口标准的设计与调试，N2821A High Sensitivity AC/DC Current Probe (1 Channel), 3 MHz, 50 uA 提供行业领先的精度与信号完整性。
