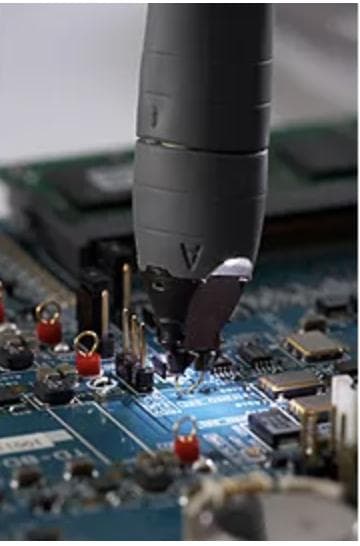

N2776A InfiniiMode Differential Spot Test Probe
面向高阶调试的专业级示波器
7000带宽
渠道分销
快速响应
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
适用场景： 电力电子
关键参数
耐压等级带宽爬电间距
- 高压探头（N2776A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N2776A 的技术参考
| Bandwidth | 7000 |
产品概览
The N2776A Differential point probe allows you to quickly probe various points on a device. Damping resistors are integrated into the probe to achieve a flat response over the rated bandwidth.
With N2752A Using, bandwidth up to 6 GHz (guaranteed) or 7 GHz (typ) can be achieved
With N2751A and Using, bandwidth up to 3.5 GHz can be achieved
With N2750A and Using, bandwidth up to 1.5 GHz can be achieved
Only for Differential or single-ended Measurement
Spacing adjustable from 0.5 mm to 7.5 mm
One kit contains three probes
With N2752A Using, bandwidth up to 6 GHz (guaranteed) or 7 GHz (typ) can be achieved
With N2751A and Using, bandwidth up to 3.5 GHz can be achieved
With N2750A and Using, bandwidth up to 1.5 GHz can be achieved
Only for Differential or single-ended Measurement
Spacing adjustable from 0.5 mm to 7.5 mm
One kit contains three probes
面向最新接口标准的设计与调试，N2776A InfiniiMode Differential Spot Test Probe 提供行业领先的精度与信号完整性。
