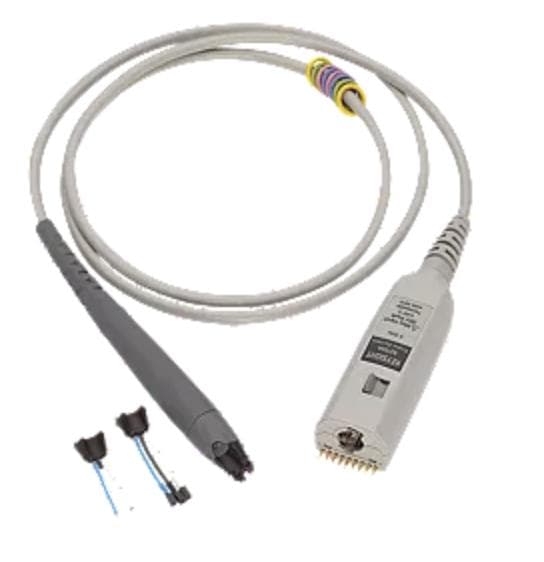

N2752A InfiniiMode ActiveDifferentialProbe, 6 GHz
Highlights
The N2752A InfiniiMode DifferentialProbe is a new generation of low-cost DifferentialActiveProbe, with AutoProbe InterfaceCompatible for Keysight InfiniiVision and Infiniium Oscilloscopes. It adopts a new operating mode to conveniently MeasureDifferential, single-ended and common-mode Signals through one probe, without the need to reconnect the Probe to change connections. The InfiniiMode of the N2752A Probe provides the following operating modes.
A – B (Differential)
A – Ground (single-ended A)
B – Ground (single-ended B)
(A+B)/2 – Ground (common mode)
Shortcut Oscilloscopes Control
The shortcut Oscilloscopes control function built into the Probe allows you to turn the Probe's headlight on or off or control certain commonly used Oscilloscopes functions, such as run/stop, auto-zoom, quick print, quick save, etc., just by pressing a button on the Probe.
MeasurementVersatility
These Probes integrate many of the functions and features required for today's common high-speed Differential probing, especially in digital system design, component design/characterization and Differential serial bus Measurement. The N2752A Series DifferentialProbes offer 2:1 and 10:1 dual attenuation settings, suitable for a wide range of applications. The dual attenuation range automatically configures based on the size of the input Signals. These Differential probes feature 200 kΩ (Differential) or Input resistance of 100 kΩ (each input individually connected to ground) and extremely low input capacitance of 700 fF minimize circuit loading. With excellent Signals fidelity, the Probe is suitable for most digital design and debug applications. Furthermore, with wide dynamic range (10 Vpp at 10:1 attenuation ratio) and Offset range (±15 V), these Probes can also be used with a wide range of analog SignalsMeasurement.
Technical indicators:
Bandwidth: 6 GHz
Attenuation ratio: 2:1 or 10:1 (switchable)
scope:
Dynamic range: ± 5 V or 10 Vpp (at 10:1 attenuation), ± 1 V or 2 Vpp (at 2:1 attenuation)
DC Offset Range: ±15 V
Maximum input Voltage: 30 V DC + DC peak
Input impedance:
Differential input resistance: 200 kΩ
Single-ended input resistance: 100 kΩ
Common mode input resistance: 50 kΩ
Input capacitance: 700 fF (when using point measurement Probe front end)
Connectivity:
Comes standard with solder-in, socket and spot probes (two probes per Probe)
Replacement parts: N2776A Differential browser probes (3 pcs), N2777A InfiniiMode solder-in probes (3 pcs), and N2778A InfiniiMode receptacle probes (3 pcs)
Order N4822A Socket Probe, Using USB/Ethernet application clamp (not included in standard Probe kit)
Highlights
The N2752A InfiniiMode DifferentialProbe is a new generation of low-cost DifferentialActiveProbe, with AutoProbe InterfaceCompatible for Keysight InfiniiVision and Infiniium Oscilloscopes. It adopts a new operating mode to conveniently MeasureDifferential, single-ended and common-mode Signals through one probe, without the need to reconnect the Probe to change connections. The InfiniiMode of the N2752A Probe provides the following operating modes.
A – B (Differential)
A – Ground (single-ended A)
B – Ground (single-ended B)
(A+B)/2 – Ground (common mode)
Shortcut Oscilloscopes Control
The shortcut Oscilloscopes control function built into the Probe allows you to turn the Probe's headlight on or off or control certain commonly used Oscilloscopes functions, such as run/stop, auto-zoom, quick print, quick save, etc., just by pressing a button on the Probe.
MeasurementVersatility
These Probes integrate many of the functions and features required for today's common high-speed Differential probing, especially in digital system design, component design/characterization and Differential serial bus Measurement. The N2752A Series DifferentialProbes offer 2:1 and 10:1 dual attenuation settings, suitable for a wide range of applications. The dual attenuation range automatically configures based on the size of the input Signals. These Differential probes feature 200 kΩ (Differential) or Input resistance of 100 kΩ (each input individually connected to ground) and extremely low input capacitance of 700 fF minimize circuit loading. With excellent Signals fidelity, the Probe is suitable for most digital design and debug applications. Furthermore, with wide dynamic range (10 Vpp at 10:1 attenuation ratio) and Offset range (±15 V), these Probes can also be used with a wide range of analog SignalsMeasurement.
Technical indicators:
Bandwidth: 6 GHz
Attenuation ratio: 2:1 or 10:1 (switchable)
scope:
Dynamic range: ± 5 V or 10 Vpp (at 10:1 attenuation), ± 1 V or 2 Vpp (at 2:1 attenuation)
DC Offset Range: ±15 V
Maximum input Voltage: 30 V DC + DC peak
Input impedance:
Differential input resistance: 200 kΩ
Single-ended input resistance: 100 kΩ
Common mode input resistance: 50 kΩ
Input capacitance: 700 fF (when using point measurement Probe front end)
Connectivity:
Comes standard with solder-in, socket and spot probes (two probes per Probe)
Replacement parts: N2776A Differential browser probes (3 pcs), N2777A InfiniiMode solder-in probes (3 pcs), and N2778A InfiniiMode receptacle probes (3 pcs)
Order N4822A Socket Probe, Using USB/Ethernet application clamp (not included in standard Probe kit)
