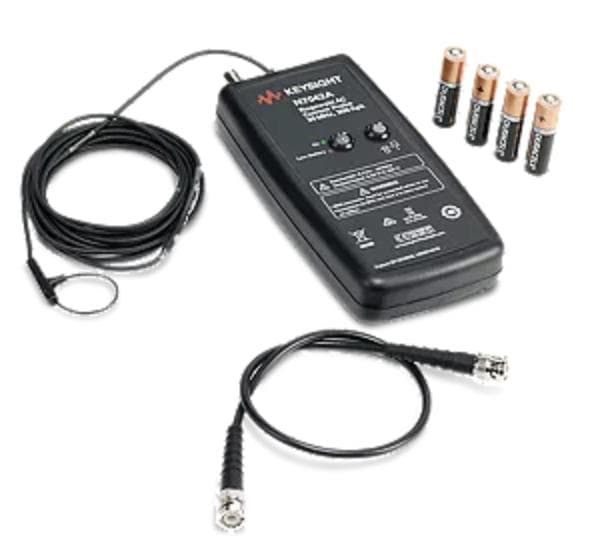

N7042A Rogowski AC CurrentProbe, 30 MHz, 300 A

The Keysight N7042A Rogowski Coil CurrentProbe can measure up to 300 A of AC current, with bandwidths ranging from 9.2 Hz to 30 MHz. The Probe has a thin, light, flexible and easy-to-operate clip-on Rogowski coil that allows current measurement in the most difficult-to-reach components and tight spaces in the circuit under test. It can also communicate large current measurements without increasing the sensor size.
The N7042A series is ideal for measuring AC current in the presence of large DC current. You can use the Probe to design, debug and troubleshoot power semiconductor circuits, power supplies, inverters and motor drives. These Probes come with an AC power adapter and 4 AA batteries. Use it with any Keysight Oscilloscopes with a 1 MΩ input BNC Interface.
Peak Current: 300 amps
Easy to operate, flexible Probe cutting-edge circuit
Coil length: 80 mm
Coil cross section (diameter): 1.7 mm
Bandwidth: 9.2 Hz to 30 MHz
Cable length: 2.5 m (3 m, including connection from integrator box to Oscilloscopes)
Powered by battery pack or AC Adapter (included)
With any Keysight OscilloscopesCompatible with 1 MΩ input BNC
