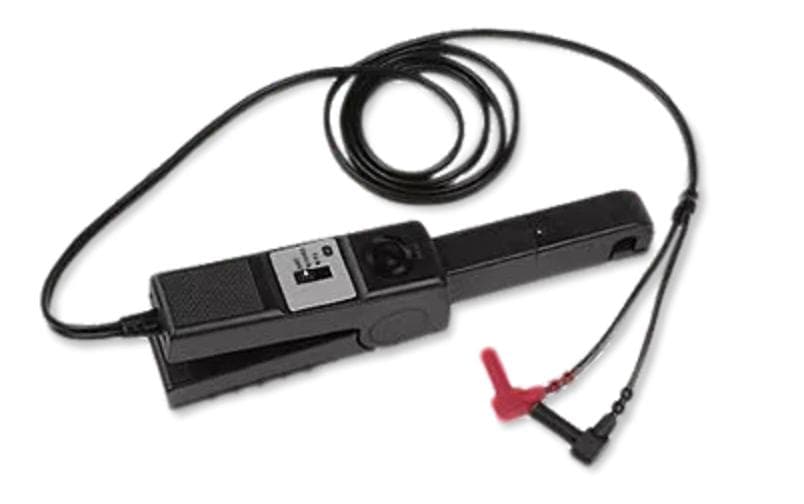

34134A DC-coupled current probe
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（34134A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
34134A 的技术参考
产品概览
Features
Terminal load: right angle shielded banana plug
Frequency range: DC to 8 kHz
Current range: 10 mA to 80 A DC, 10 mA to 60 A AC
Accuracy: 2% of reading +5 mA (1 V/A range)
Output signal: 1 V/A and 10 mA
Length: 1.5 meters
Minimum input resistance of digital multimeter: 100 kΩ
Rated voltage: 600 V CAT III
The Keysight 34134A is a versatile clamp-on probe that can measure ground current, power supply ripple, or current distribution in a system.
The 34134A is compatible with the 34401A, 34410A, 34411A, and L4411A digital multimeters. For compatibility information with other digital multimeter models, see the compatibility notes in the 34134A technical data sheet.
面向最新接口标准的设计与调试，34134A DC-coupled current probe 提供行业领先的精度与信号完整性。
