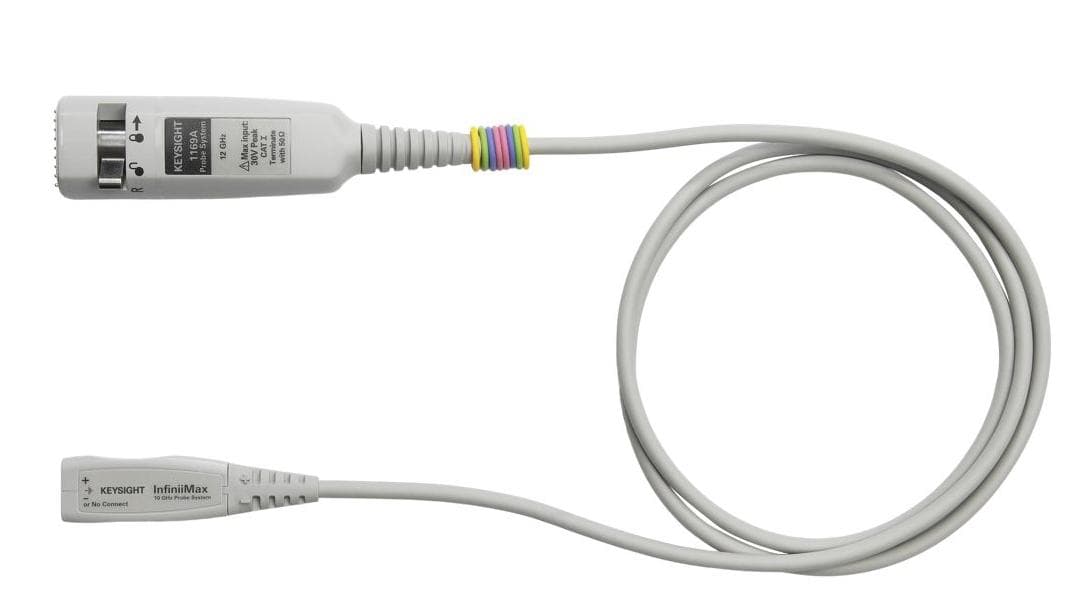

1169B InfiniiMax II Series Probe Amplifier, 12 GHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（1169B）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
1169B 的技术参考
产品概览
Features
bandwidth:
12 GHz Specifications
13 GHz, typical
scope:
Dynamic range: 3.3 V peak-to-peak
DC bias range: +/- 16V
Maximum voltage: +/- 30V
Input impedance:
Differential input resistance: 50 kΩ
Differential input capacitance: 0.21 pF
Single-ended input resistance: 25 kΩ
Single-ended input capacitance: 0.35 pF
Recommended probe heads:
MX0100A 25 GHz Micro Probe Head
MX0106A 23 GHz solder-in probe head
MX0105A 20 GHz SMA probe head
N2839A 21 GHz browser probe head
N5425B 18 GHz ZIF probe head
N2851A 12 GHz QuickTip probe head
E2678B 12 GHz Socket Probe Head
N5381B 12 GHz solder-in probe head
N5380B 12 GHz SMA probe head
E2677B 12 GHz solder-in probe head
Oscilloscope connectivity:
MXR, EXR oscilloscopes
S Series Oscilloscope
90000A oscilloscope
UXR 3.5mm oscilloscope with N5442A adapter
UXR 1 and 1.85mm oscilloscopes and N5442A, N2852A adapters
90000X, Q, V, Z Series Oscilloscopes and N5442A Adapter
The InfiniiMax II Series 1169B 12 GHz probing system for Infiniium oscilloscopes provides full real-time bandwidth with bandwidth specifications up to 12 GHz and bandwidth typical up to 13 GHz. This award-winning InfiniiMax detection system meets even the more demanding mechanical access requirements without sacrificing any performance.
The 1168A/69A has a unique 3.4:1 attenuation ratio and the lowest noise floor among InfiniiMax probes, making it ideal for signal integrity measurements requiring high sensitivity. The 1168A/69A probe system offers a wide range of probe heads and accessories to support many practical applications. High-performance InfiniiMax probe accessories support spot, solder-in, receptacle, ZIF probe, QuickTip (magnetic probe), soft-touch probe head and SMA probe head solutions with numerous options to choose from.
1169B is a RoHS compliant model of 1169A. 1169B is exactly the same as 1169A in terms of appearance, size, function and price.
