1168B InfiniiMax II Series Probe Amplifier, 10 GHz

产品概览

Features

bandwidth:

10 GHz

scope:

Dynamic range: 3.3 V peak-to-peak

DC offset range: +/- 16V

Maximum voltage: +/- 30V

Input impedance:

Differential input resistance: 50 kOhm

Differential input capacitance: 0.21 pF

Single-ended input resistance: 25 kOhm

Single-ended input capacitance: 0.35 pF

Recommended probe heads:

MX0100A 25 GHz Micro Probe Head

MX0106A 23 GHz solder-in probe head

MX0105A 20 GHz SMA probe head

N2839A 21 GHz spot probe head

N5425B 18 GHz ZIF probe head

N2851A 12 GHz QuickTip probe head

E2678B 12 GHz Socket Probe Head

N5381B 12 GHz solder-in probe head

N5380B 12 GHz SMA probe head

E2677B 12 GHz solder-in probe head

Oscilloscope connectivity:

MXR, EXR oscilloscopes

S Series Oscilloscope

90000A oscilloscope

UXR 3.5mm oscilloscope with N5442A adapter

UXR 1 and 1.85mm oscilloscopes and N5442A and N2852A adapters

90000X, Q, V, Z Series Oscilloscopes and N5442A Adapter

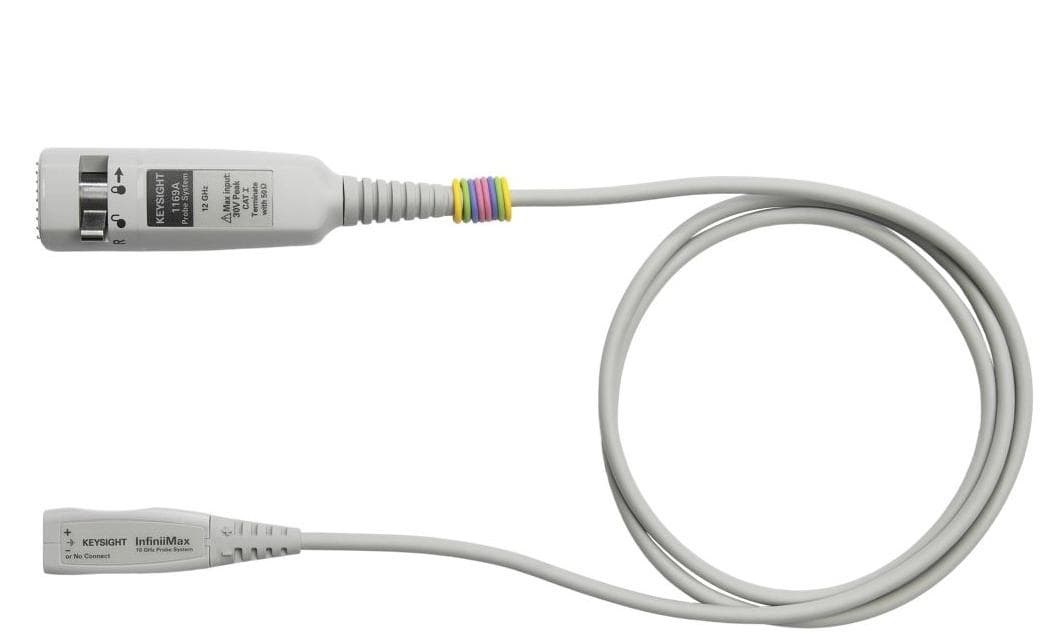

The InfiniiMax II Series 1168B 10 GHz probing system for Infiniium oscilloscopes provides full real-time bandwidth up to 10 GHz. This award-winning InfiniiMax detection system meets even the most demanding mechanical access requirements without sacrificing any performance.

The 1168A/69A has a unique 3.4:1 attenuation ratio and the lowest noise floor among InfiniiMax probes, making it ideal for signal integrity measurements requiring high sensitivity. The 1168A/69A probe system offers a wide range of probe heads and accessories to support many practical applications. High-performance InfiniiMax probe accessories support point-to-point, solder-in, socket-based, ZIF probes, QuickTip (magnetic probes), soft-touch probe heads, and SMA probe head solutions, with a wide range of options to choose from.

1168B is a RoHS compliant model of 1168A. 1168B is exactly the same as 1168A in appearance, size, function and price.

面向最新接口标准的设计与调试，1168B InfiniiMax II Series Probe Amplifier, 10 GHz 提供行业领先的精度与信号完整性。
