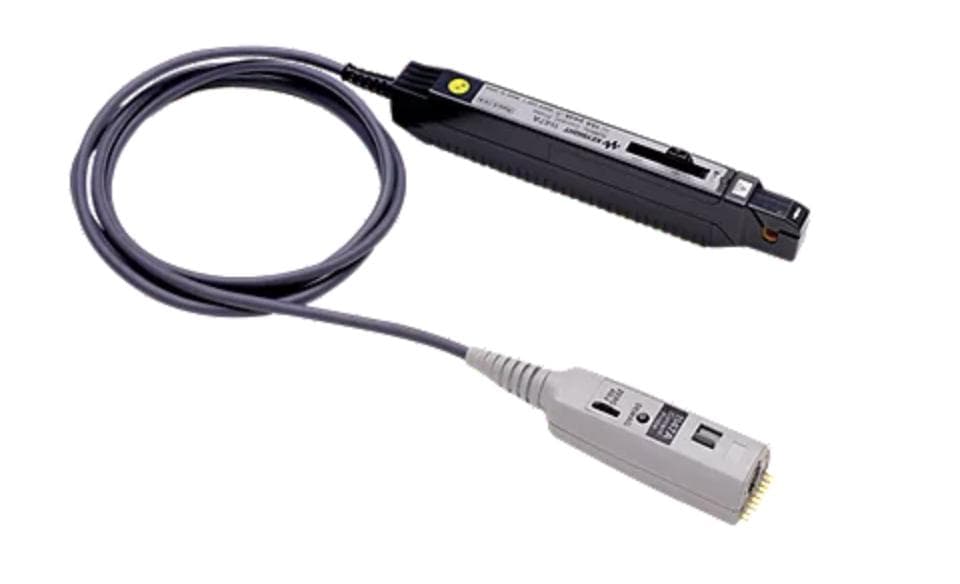

1147B AC/DC current probe, 50 MHz, 15 A
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（1147B）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
1147B 的技术参考
产品概览
Features
Large bandwidth: DC to 50 MHz
High signal-to-noise ratio, small current measurement capability
15 A Peak, 15 A DC, 10 Arms Continuous, 30 A Peak Discontinuous
Protection features easily protect against excessive input
Degaussing switch eliminates residual magnetism generated in the core
Compatible with high-impedance AutoProbe interfaces
When used with the 80000/90000 Series, the N278xA current probe should be used with the N2779A power supply and the E2697A high impedance adapter
When used with the 90000 X-Series, should be used with the N5449A high-impedance probe adapter
The Keysight 1147B is a wide bandwidth active current probe for InfiniiVision and Infiniium oscilloscopes.
This probe has a flat bandwidth (dc to 50 MHz), low noise (< 2.5 mA rms）和电路插入损耗小等特点。
The 1147B probe is ideal for capturing transient current signals such as those found in motor controllers, switching power supplies, inverters, and current amplifiers driving inductive loads.
1147B is the replacement of 1147A. 1147A is now discontinued. 1147B is exactly the same as 1147A in appearance, size, function and price.
面向最新接口标准的设计与调试，1147B AC/DC current probe, 50 MHz, 15 A 提供行业领先的精度与信号完整性。
