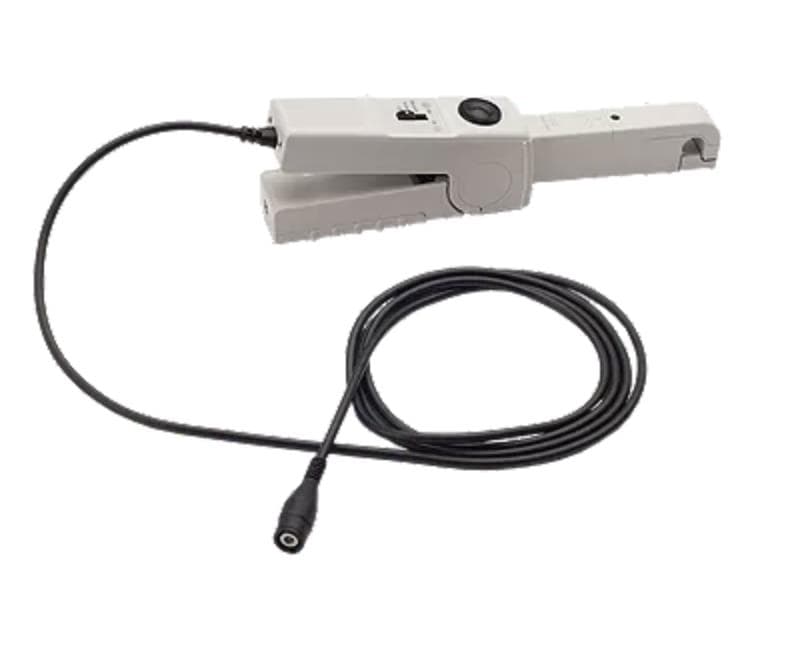

1146B AC/DC current probe, 100 kHz, 100 A
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（1146B）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
1146B 的技术参考
产品概览
Features
Frequency range: DC to 100 kHz (-3dB current derating)
Maximum peak current: 10 A DC or peak AC at 100 mV/A; 100 A DC or peak AC at 10 mV/A
AC current accuracy: 100 mV/A (50 mV, 10 A peak) - 3% of reading ≥ 50 mA; 10 mV/A (500 mA to 40 A peak) - 4% of reading ≥ 50 mA; 10 mV/A (40 A to 100 A peak) - 15% maximum, 100 A
Operating voltage: 600 V maximum
Battery: 9 V alkaline
The Keysight 1146B AC/DC probe accurately measures and displays DC or peak AC (DC to 100 kHz) currents up to 100 A without interrupting the circuit. The 1146B AC/DC probe uses Hall Effect sensor technology to measure both AC and DC signals. It is compatible with Keysight oscilloscopes with 0.2 to 0.5 V/div sensitivity and 1 MΩ BNC input.
The 1146B AC/DC probe is ideal for capturing transient current signals such as those found in motor controllers, switching power supplies, inverters, and current amplifiers driving inductive loads.
The 1146B AC/DC probe has the same form factor and functionality as the discontinued 1146A and is a replacement for the latter.
面向最新接口标准的设计与调试，1146B AC/DC current probe, 100 kHz, 100 A 提供行业领先的精度与信号完整性。
