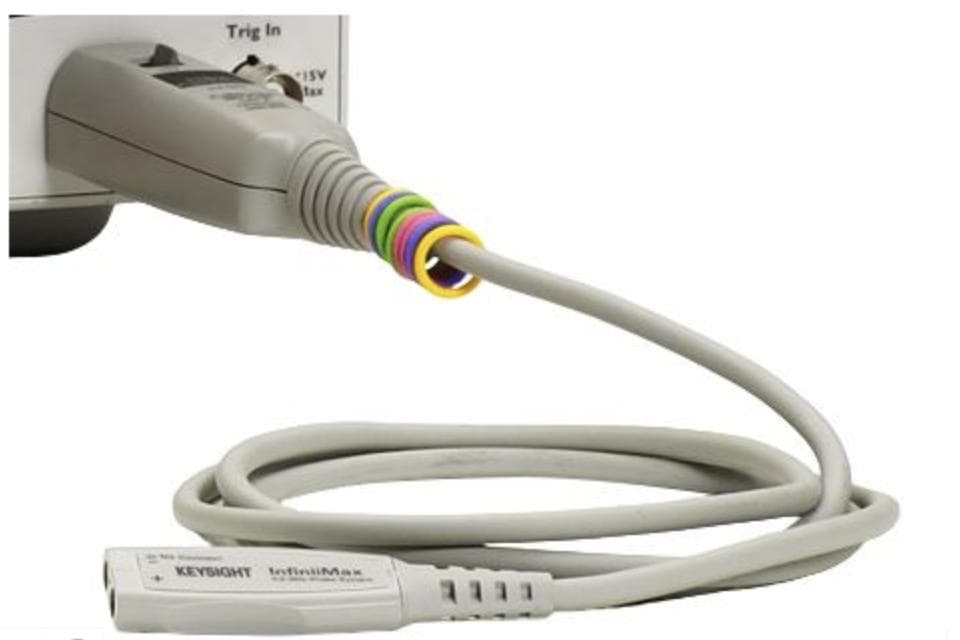

1132B InfiniiMax probe, 5 GHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（1132B）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
1132B 的技术参考
产品概览
Features
bandwidth:
5 GHz
scope:
Dynamic range: +/- 2.5V
DC offset range: +/- 12V, using probe offset
Maximum voltage: +/- 30V
Input impedance:
Differential input resistance: 50 kΩ
Differential input capacitance: 0.27-0.34 pF
Single-ended input resistance: 25 kΩ
Single-ended input capacitance: 0.44-0.67 pF
For high-speed differential or single-ended probing in embedded designs, the InfiniiMax 5 GHz 1132B Differential Probe Amplifier is the ideal companion to the Infiniium 4 GHz oscilloscope. It has ultra-low input capacitance and flat frequency response, and uses innovative resistive probe technology, resulting in extremely low loading effects when probing the device under test, resulting in excellent signal fidelity. The InfiniiMax 1130B-34B series provides a wide range of probe heads and accessories for a wide range of applications. These accessories meet particularly demanding mechanical access requirements.
The 1132B is a RoHS compliant model of the 1132A. 1132B is exactly the same as 1132A in appearance, size, function and price.
To view other probe head accessories for the InfiniiMax 1130B-34B, visit the InfiniiMax Probe Accessories page.
面向最新接口标准的设计与调试，1132B InfiniiMax probe, 5 GHz 提供行业领先的精度与信号完整性。
