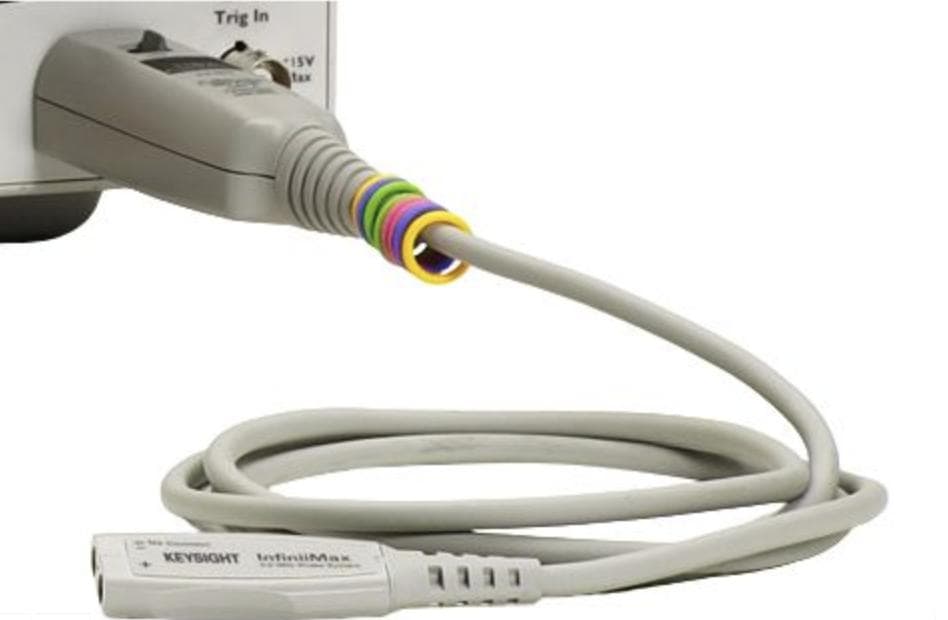

1130B InfiniiMax probe, 1.5 GHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（1130B）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
1130B 的技术参考
产品概览
bandwidth:
1.5 GHz
scope:
Dynamic range: +/- 2.5V
DC offset range: +/- 12V, using probe offset
Maximum input voltage: 30V peak
Input impedance:
Differential input resistance: 50 kΩ
Differential input capacitance: 0.27-0.34 pF
Single-ended input resistance: 25 kΩ
Single-ended input capacitance: 0.44-0.67 pF
For high-speed differential or single-ended probing in embedded designs, the InfiniiMax 1.5 GHz 1130B differential probe amplifier is an ideal companion for Infiniium 600 MHz to 1 GHz oscilloscopes and InfiniiVision 500 MHz to 1 GHz oscilloscopes. It has ultra-low input capacitance and flat frequency response, and uses innovative resistive probe technology, resulting in extremely low loading effects when probing the device under test, resulting in excellent signal fidelity. The E2675B differential browser probe kit (ordered separately) is recommended for the 1130B because the probe spacing of this kit is variable and aligned exactly with the z-axis, which improves the probe's ease of use/versatility. Also available are the E2669B Differential Connectivity Kit or the E2668B Single-Ended Connectivity Kit (ordered separately), which include a variety of connectivity probe heads and accessories.
The 1130B is the RoHS compliant model of the 1130A. 1130B is exactly the same as 1130A in terms of appearance, size, function and price.
To view other probe head accessories for the InfiniiMax 1130B-34B, visit the InfiniiMax Probe Accessories page.
面向最新接口标准的设计与调试，1130B InfiniiMax probe, 1.5 GHz 提供行业领先的精度与信号完整性。
