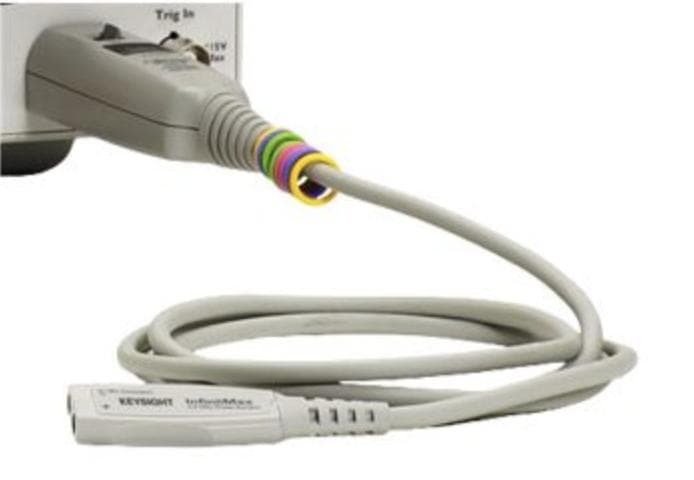

1131B InfiniiMax Probe, 3.5 GHz
面向高阶调试的专业级示波器
3500带宽
渠道分销
快速响应
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
适用场景： 电力电子
关键参数
耐压等级带宽爬电间距
- 高压探头（<br>InfiniiMax）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
<br>InfiniiMax 的技术参考
| Bandwidth | 3500 |
产品概览
InfiniiMax 3.5 GHz Probe
bandwidth:
3.5 GHz
scope:
Dynamic range: +/- 2.5V
DC bias range: +/- 12V, UsingProbe bias
Maximum Voltage: +/- 30V
Input impedance:
Differential input resistance: 50 kΩ
Differential input capacitance: 0.27-0.34 pF
Single-ended input resistance: 25 kΩ
Single-ended input capacitance: 0.44-0.67 pF
For high-speed Differential or single-ended probing in embedded designs, the InfiniiMax 3.5 GHz 1131B DifferentialProbe amplifier is the ideal companion to Infiniium 2.5 to 3 GHz Oscilloscopes. It has ultra-low input capacitance and flat frequency response, and uses innovative resistive probe technology, resulting in extremely small loading effects when probing the device under test, resulting in excellent Signals fidelity. InfiniiMax The 1130B-34B series provides a rich range of Probe front ends and accessories with a wide range of applications. These accessories can meet particularly stringent mechanical access requirements.
1131B is a RoHS compliant version of 1131A. 1131B is exactly the same as 1131A in terms of shape, size, function and price.
To view other Probe front-end accessories Suitable for InfiniiMax 1130B-34B, please visit the InfiniiMax Probe accessories page.
面向最新接口标准的设计与调试，1131B InfiniiMax Probe, 3.5 GHz 提供行业领先的精度与信号完整性。
