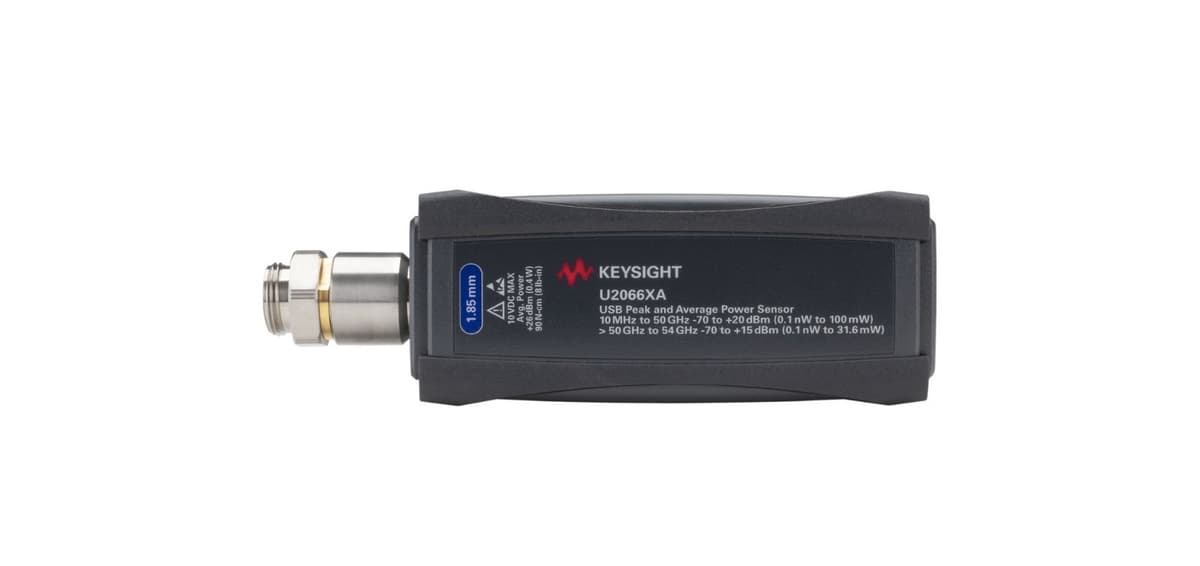

U2066XA 10 MHz to 54 GHz USB 宽动态范围峰值功率/平均Power Sensor
面向高阶调试的专业级示波器
推荐方案套装
按场景配置的功率传感器方案。
校准配置
精确射频功率校准流程。
- 功率传感器（U2066XA）
- USB 功率计基座
- 校准参考件
- 射频线缆
* 工程师将进行兼容性核查。
详细规格
U2066XA 的技术参考
| Power | -70 to +20 dBm |
产品概览
Frequency range of 10 MHz – 67 GHz
USB connectivity with a wide dynamic range of -70 to +20 dBm (frequency 10 MHz to 50 GHz) / -70 to +15 dBm (frequency > 50 GHz to 54 GHz) / -70 to +10 dBm (frequency > 54 GHz to 67 GHz) for small signal measurements
5 MHz video bandwidth and single shot real-time capture at 20 Msample/sec per second
Variable Sampling Rate 1M samples/sec and Long Memory 1M samples data storage
Fast real-time measurement of 50,000 readings/sec
Real-time measurement with zero dead time to ensure every single continuous pulse is measured
Average mode time-selectivity function allows full dynamic range for average and time selectivity average power measurements
Internal zero and automatic calibration saves time and reduces measurement uncertainty
A BenchVue software license (BV0007B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences
面向最新接口标准的设计与调试，U2066XA 10 MHz to 54 GHz USB 宽动态范围峰值功率/平均Power Sensor 提供行业领先的精度与信号完整性。
