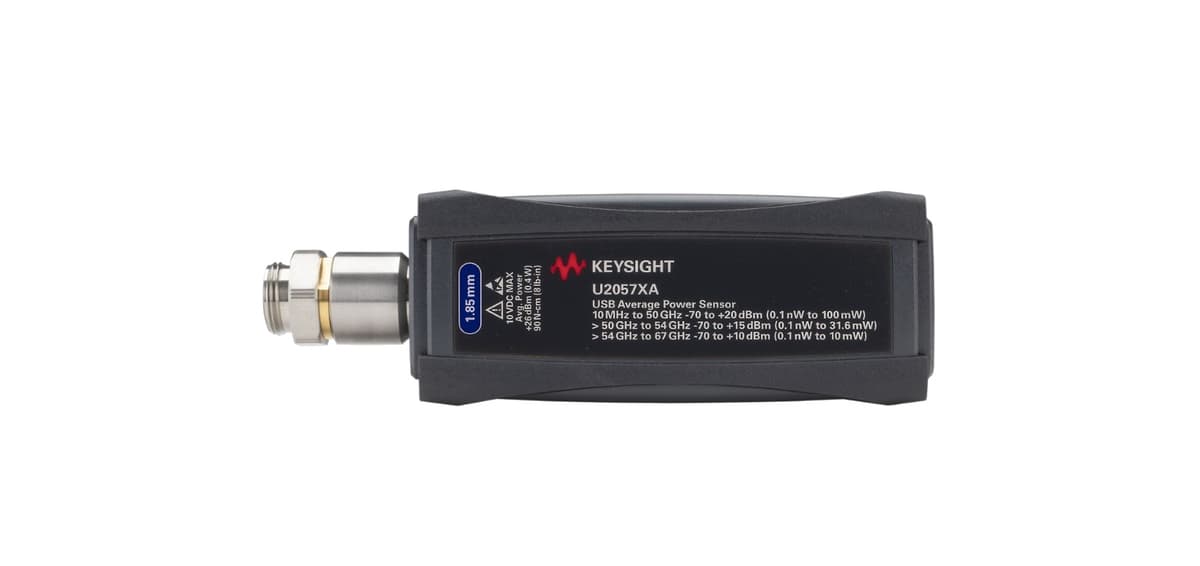

U2057XA 10 MHz to 67 GHz USB 宽动态范围平均Power Sensor
面向高阶调试的专业级示波器
推荐方案套装
按场景配置的功率传感器方案。
校准配置
精确射频功率校准流程。
- 功率传感器（U2057XA）
- USB 功率计基座
- 校准参考件
- 射频线缆
* 工程师将进行兼容性核查。
详细规格
U2057XA 的技术参考
| Power | -70 to +20 dBm |
产品概览
Frequency range of 10 MHz – 67 GHz
USB connectivity with a wide dynamic range of -70 to +20 dBm (frequency 10 MHz to 50 GHz) / -70 to +15 dBm (frequency > 50 GHz to 54 GHz) / -70 to +10 dBm (frequency > 54 GHz to 67 GHz) for small signal measurements
5 MHz video bandwidth and single shot real-time capture at 20 Msample/sec per second
Variable Sampling Rate 1M samples/sec and Long Memory 1M samples data storage
Fast real-time measurement of 50,000 readings/sec
Real-time measurement with zero dead time to ensure every single continuous pulse is measured
Average mode time-selectivity function allows full dynamic range for average and time selectivity average power measurements
Internal zero and automatic calibration saves time and reduces measurement uncertainty
A BenchVue software license (BV0007B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences
面向最新接口标准的设计与调试，U2057XA 10 MHz to 67 GHz USB 宽动态范围平均Power Sensor 提供行业领先的精度与信号完整性。
