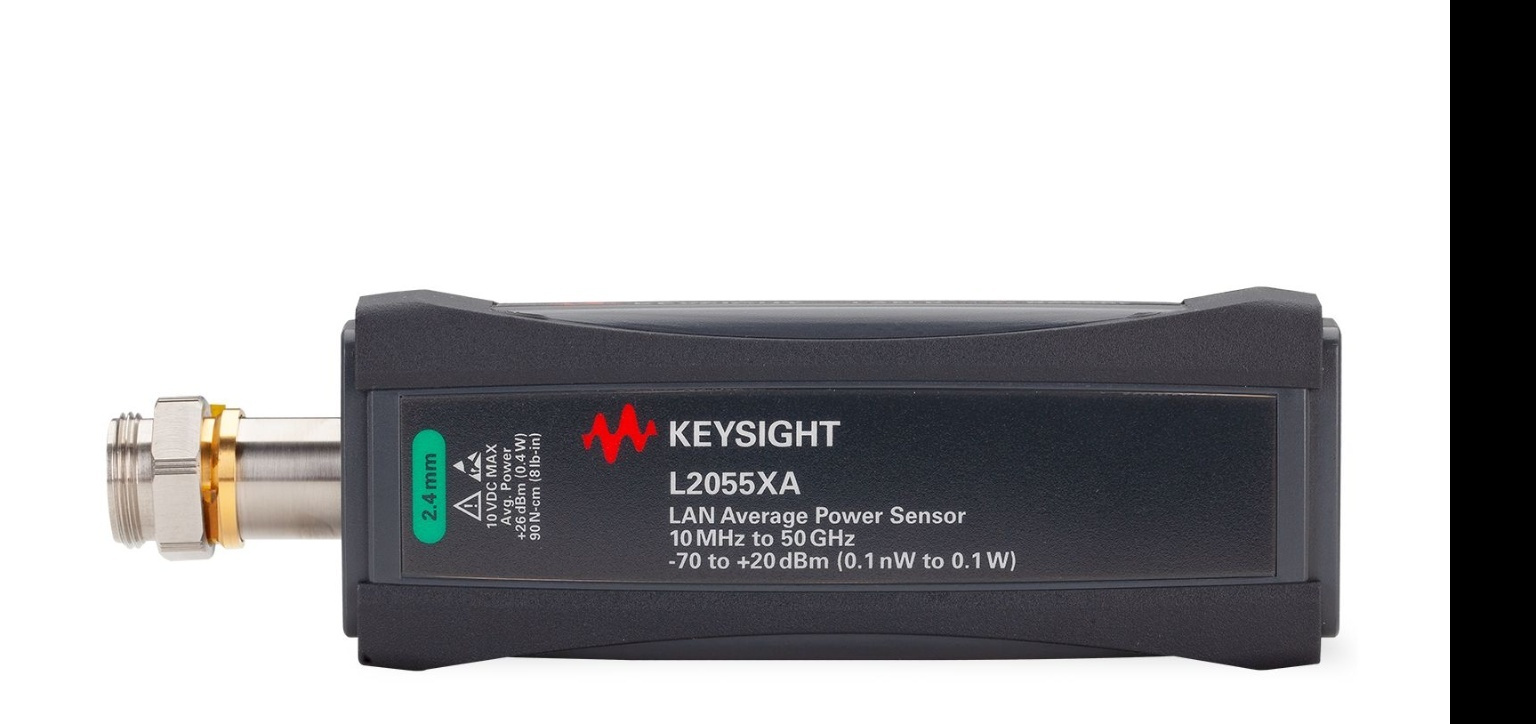

L2055XA 10 MHz to 50/53 GHz LAN 宽动态范围平均Power Sensor
面向高阶调试的专业级示波器
推荐方案套装
按场景配置的功率传感器方案。
校准配置
精确射频功率校准流程。
- 功率传感器（L2055XA）
- USB 功率计基座
- 校准参考件
- 射频线缆
* 工程师将进行兼容性核查。
详细规格
L2055XA 的技术参考
| Power | -70 to +20 dBm |
产品概览
Frequency range of 10 MHz – 50 GHz
LAN connectivity a with wide dynamic range of -70 to +20 dBm for small signal measurements
Fast real-time measurement of 50,000 readings/sec
Variable Sampling Rate 1M samples/sec and Long Memory 1M samples data storage
Real-time measurement with zero dead time to ensure every single continuous pulse is measured
Average mode time-selectivity function allows full dynamic range for average and time selectivity average power measurements
Internal zero and automatic calibration saves time and reduces measurement uncertainty
Your instrument now comes with the BenchVue Basic Power Meter/Sensor Control and Analysis App (BV0007B). The BenchVue software simplifies the process of connecting, controlling instruments, and automating test sequences. Download the BenchVue Basic App (BV0007B) for free to efficiently manage your power meter/sensor instruments
面向最新接口标准的设计与调试，L2055XA 10 MHz to 50/53 GHz LAN 宽动态范围平均Power Sensor 提供行业领先的精度与信号完整性。
