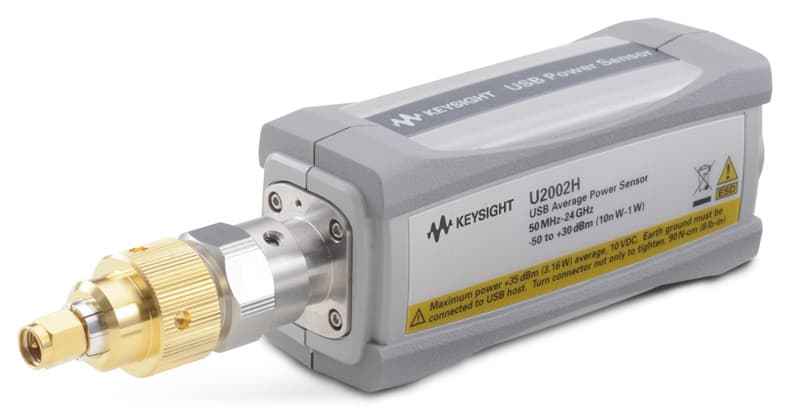

U2002H USB Power Sensor, 50 MHz to 24 GHz
面向高阶调试的专业级示波器
渠道分销
快速响应
推荐方案套装
按场景配置的功率传感器方案。
校准配置
精确射频功率校准流程。
适用场景： 实验室校准
关键参数
频率范围动态范围测量不确定度
- 功率传感器（U2002H）
- USB 功率计基座
- 校准参考件
- 射频线缆
* 工程师将进行兼容性核查。
详细规格
U2002H 的技术参考
产品概览
Frequency range: 50 MHz to 24 GHz
Wide dynamic range: -50 dBm to +30 dBm
Internal zeroing while connected to the DUT
Fast measurement speed: up to 250 readings/second
Supports internal/external trigger measurements, internal triggering and trace display
Compatible with other Keysight instruments
Your instrument now comes with the BenchVue Basic Power Meter/Sensor Control and Analysis App (BV0007B). The BenchVue software simplifies the process of connecting, controlling instruments, and automating test sequences. Download the BenchVue Basic App (BV0007B) for free to efficiently manage your power meter/sensor instruments
Wide dynamic range: -50 dBm to +30 dBm
Internal zeroing while connected to the DUT
Fast measurement speed: up to 250 readings/second
Supports internal/external trigger measurements, internal triggering and trace display
Compatible with other Keysight instruments
Your instrument now comes with the BenchVue Basic Power Meter/Sensor Control and Analysis App (BV0007B). The BenchVue software simplifies the process of connecting, controlling instruments, and automating test sequences. Download the BenchVue Basic App (BV0007B) for free to efficiently manage your power meter/sensor instruments
面向最新接口标准的设计与调试，U2002H USB Power Sensor, 50 MHz to 24 GHz 提供行业领先的精度与信号完整性。
