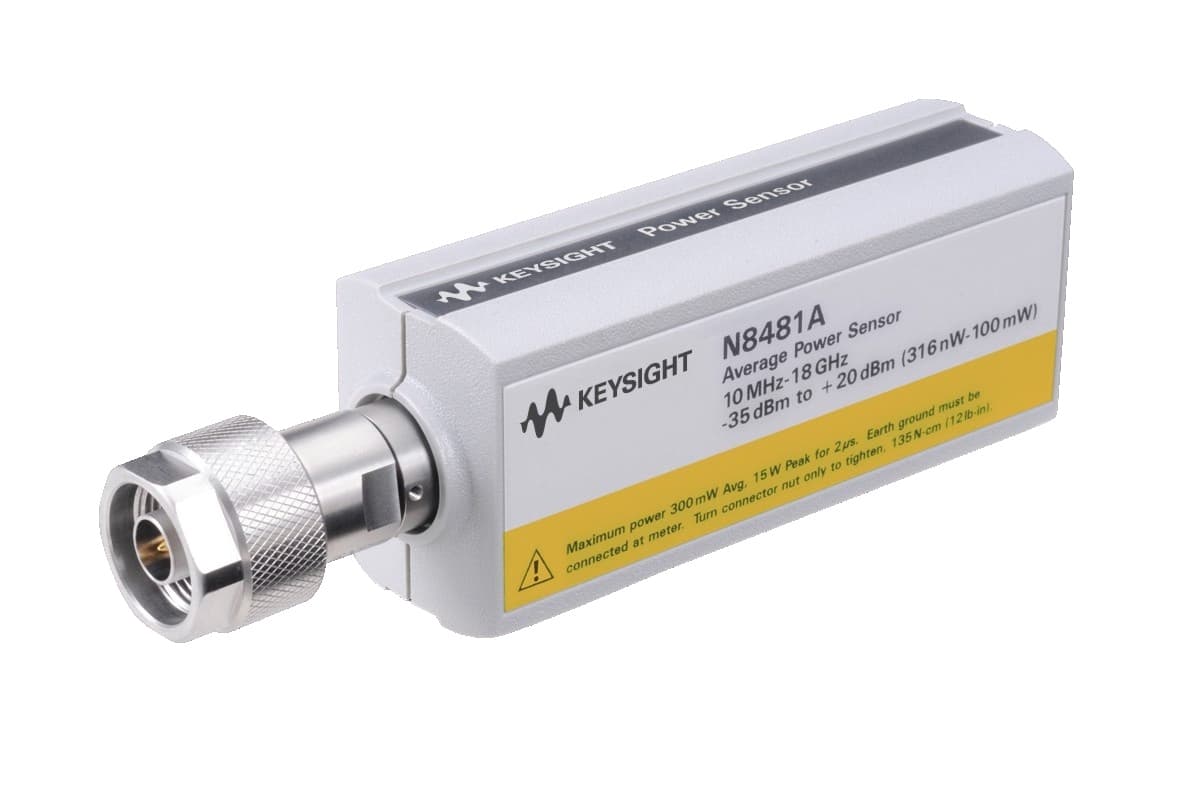

N8481A ThermocouplePower Sensor
面向高阶调试的专业级示波器
渠道分销
快速响应
推荐方案套装
按场景配置的功率传感器方案。
校准配置
精确射频功率校准流程。
适用场景： 实验室校准
关键参数
频率范围动态范围测量不确定度
- 功率传感器（N8481A）
- USB 功率计基座
- 校准参考件
- 射频线缆
* 工程师将进行兼容性核查。
详细规格
N8481A 的技术参考
| Power | -35 to +20 dBm |
产品概览
EEPROM to store cal factors eliminates manual entry
Wide frequency range from 10 MHz to 18 GHz
Wide dynamic range from -35 to +20 dBm
Power linearity of less than 1%, excellent SWR of mismatch uncertainty, and highly accurate power repeatability
Accurate calibration and traceability to US National Institute of Standards and Technology (NIST)
SCPI codes compatible with 8480 series (option CFT)
SCPI codes compatible with E-Series sensor (standard option)
Compatible with EPM (N1913/14B, N1913/14A & E4418/19B), EPM-P (E4416/17A), P-Series (N1911/12A) power meters
Wide frequency range from 10 MHz to 18 GHz
Wide dynamic range from -35 to +20 dBm
Power linearity of less than 1%, excellent SWR of mismatch uncertainty, and highly accurate power repeatability
Accurate calibration and traceability to US National Institute of Standards and Technology (NIST)
SCPI codes compatible with 8480 series (option CFT)
SCPI codes compatible with E-Series sensor (standard option)
Compatible with EPM (N1913/14B, N1913/14A & E4418/19B), EPM-P (E4416/17A), P-Series (N1911/12A) power meters
面向最新接口标准的设计与调试，N8481A ThermocouplePower Sensor 提供行业领先的精度与信号完整性。
