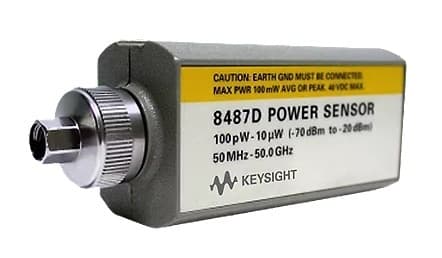

8487D DiodePower Sensor
面向高阶调试的专业级示波器
渠道分销
快速响应
推荐方案套装
按场景配置的功率传感器方案。
校准配置
精确射频功率校准流程。
适用场景： 实验室校准
关键参数
频率范围动态范围测量不确定度
- 功率传感器（8487D）
- USB 功率计基座
- 校准参考件
- 射频线缆
* 工程师将进行兼容性核查。
详细规格
8487D 的技术参考
| Frequency | 50 MHz to 50 GHz |
| Power | -70 to -20 dBm |
产品概览
Excellent SWR for reducing mismatch uncertainty
Accurate calibration and traceability to US National Institute of Standards and Technology (NIST) millimeter-wave sensor calibration
Compatible with EPM (new N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters, plus the E1416A VXI and discontinued 70100A and 43X power meter
Accurate average power measurements over -70 to -20 dBm
Frequency range 50 MHz to 50 GHz
Diode power sensing element
The Keysight 11708A 30 dB attenuator is supplied with 8480 series power sensors with the D suffix, for calibration with the power meter 0 dBm, 50 MHz reference.
Accurate calibration and traceability to US National Institute of Standards and Technology (NIST) millimeter-wave sensor calibration
Compatible with EPM (new N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters, plus the E1416A VXI and discontinued 70100A and 43X power meter
Accurate average power measurements over -70 to -20 dBm
Frequency range 50 MHz to 50 GHz
Diode power sensing element
The Keysight 11708A 30 dB attenuator is supplied with 8480 series power sensors with the D suffix, for calibration with the power meter 0 dBm, 50 MHz reference.
面向最新接口标准的设计与调试，8487D DiodePower Sensor 提供行业领先的精度与信号完整性。
