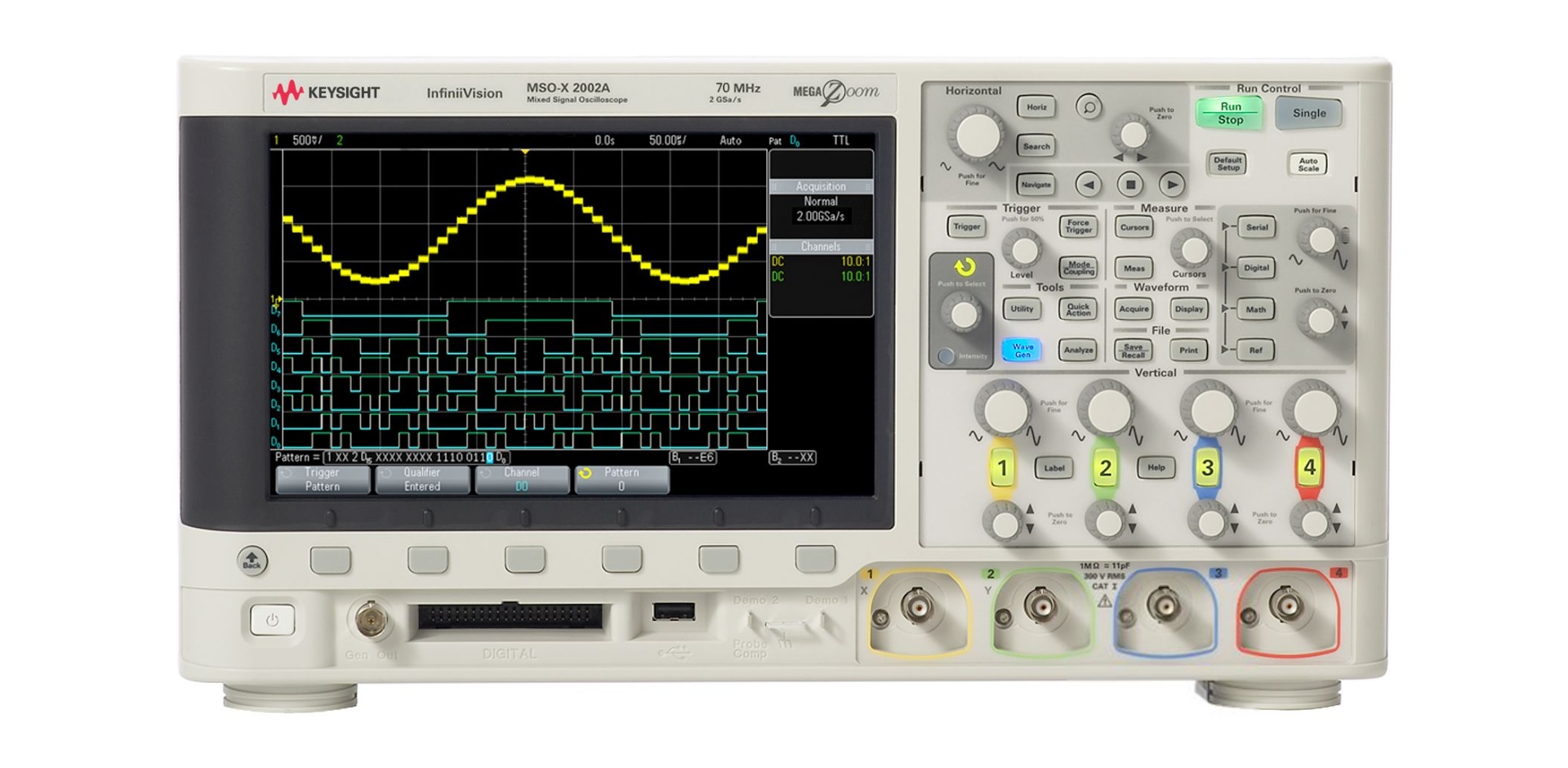

MSOX2002A Mixed Signal Oscilloscope: 70 MHz, 2 Analog Plus 8 Digital Channels
面向高阶调试的专业级示波器
70 MHz带宽
2 Analog + 8 Digital通道
2 GSa/s采样率
1 Mpts存储深度
渠道分销
快速响应
推荐方案套装
面向验证与调试的示波器场景化配置。
台式基础配置
面向常规调试与验证的基础配置。
适用场景： 研发与台式验证
关键参数
带宽裕量通道数量存储深度
- 主机（MSOX2002A）
- 无源探头（4 支）
- 标准质保与认证
- 校准证书
* 工程师将进行兼容性核查。
详细规格
MSOX2002A 的技术参考
| Bandwidth | 70 MHz |
| Channels | 2 Analog + 8 Digital |
| Sample Rate | 2 GSa/s |
| Memory | 1 Mpts |
| Rise Time | ≤ 5 ns |
| Memory Depth | 1 Mpts |
| Waveform Update Rate | > 200,000 wfms/s |
| Input Impedance | 1 MΩ |
| Horizontal Range | 5 ns/div to 50 s/div |
| Display | 8.5-inch WVGA |
产品概览
The InfiniiVision 2000 X-Series offers entry-level price points to fit your budget with superior performance and optional capabilities that are not available in any other oscilloscope in its class.
核心优势
Fastest Update Rate
> 200,000 waveforms/sec update rate allows you to see more of your signal more of the time.
5-in-1 Integration
Combines oscilloscope, logic timing analyzer, WaveGen, serial protocol analyzer, and digital voltmeter.
MegaZoom IV Technology
Enables high-resolution, deep-memory captures with responsive performance.
Fully Upgradable
Add bandwidth, digital channels, or WaveGen at any time.
面向最新接口标准的设计与调试，MSOX2002A Mixed Signal Oscilloscope: 70 MHz, 2 Analog Plus 8 Digital Channels 提供行业领先的精度与信号完整性。
