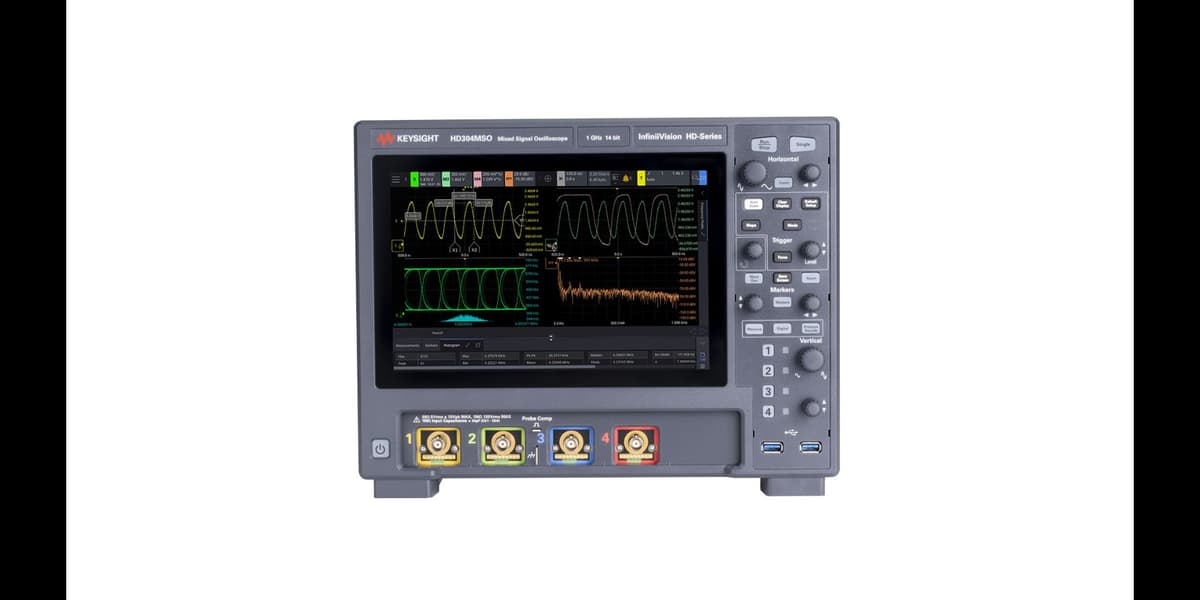

HD304MSO InfiniiVision HD3 Series Oscilloscope: 4 Analog + 16 Digital
面向高阶调试的专业级示波器
200 MHz - 1 GHz (Upgradable)带宽
4 Analog + 16 Digital通道
3.2 GSa/s采样率
100 Mpts per channel存储深度
渠道分销
快速响应
推荐方案套装
面向验证与调试的示波器场景化配置。
台式基础配置
面向常规调试与验证的基础配置。
适用场景： 研发与台式验证
关键参数
带宽裕量通道数量存储深度
- 主机（HD304MSO）
- 无源探头（4 支）
- 标准质保与认证
- 校准证书
* 工程师将进行兼容性核查。
详细规格
HD304MSO 的技术参考
| Bandwidth | 200 MHz - 1 GHz (Upgradable) |
| Channels | 4 Analog + 16 Digital |
| Sample Rate | 3.2 GSa/s |
| Memory | 100 Mpts per channel |
| ADC Resolution | 14-bit (up to 16-bit) |
| Memory Depth | 100 Mpts per channel |
| Waveform Update Rate | > 1,300,000 wfms/s |
| Noise Floor | 50 µVrms (typical) |
| Display | 10.1-inch Full HD Capacitive Touch |
产品概览
Keysight InfiniiVision HD3 Series: 14-bit ADC, 4x vertical accuracy, and uncompromised update rate.
核心优势
14-Bit ADC
4x signal resolution with custom ASIC technology.
MegaZoom 5
Uncompromised > 1.3 million wfms/s even with measurements on.
Fault Hunter
Automatically scans for glitches and anomalies.
Deep Memory
100 Mpts per channel standard, no interleaving.
面向最新接口标准的设计与调试，HD304MSO InfiniiVision HD3 Series Oscilloscope: 4 Analog + 16 Digital 提供行业领先的精度与信号完整性。
