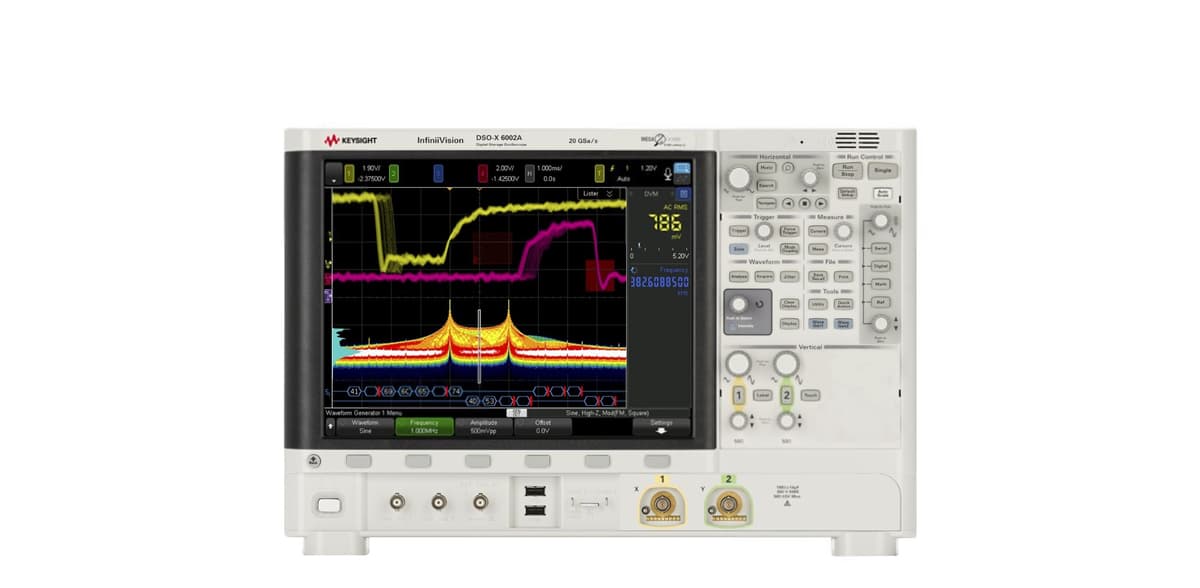

DSOX6002A InfiniiVision 6000 X-Series Oscilloscope: 1 to 6 GHz, 2 Analog Channels
面向高阶调试的专业级示波器
1 GHz - 6 GHz (Upgradable)带宽
2 Analog通道
20 GSa/s (half) / 10 GSa/s (all)采样率
4 Mpts存储深度
渠道分销
快速响应
推荐方案套装
面向验证与调试的示波器场景化配置。
台式基础配置
面向常规调试与验证的基础配置。
适用场景： 研发与台式验证
关键参数
带宽裕量通道数量存储深度
- 主机（DSOX6002A）
- 无源探头（4 支）
- 标准质保与认证
- 校准证书
* 工程师将进行兼容性核查。
详细规格
DSOX6002A 的技术参考
| Bandwidth | 1 GHz - 6 GHz (Upgradable) |
| Channels | 2 Analog |
| Sample Rate | 20 GSa/s (half) / 10 GSa/s (all) |
| Memory | 4 Mpts |
| Memory Depth | 4 Mpts (half) / 2 Mpts (all) |
| Waveform Update Rate | > 450,000 wfms/s |
| Rise Time | ≤ 75 ps (6 GHz model) |
| Time Base Range | 100 ps/div to 50 s/div |
| Display | 12.1-inch Multi-Touch Capacitive |
| Noise Floor | 115 µVrms (1 GHz) to 210 µVrms (6 GHz) |
产品概览
Keysight InfiniiVision 6000 X-Series: The new standard in portable performance. 6 GHz bandwidth, 20 GSa/s sample rate, and voice control.
核心优势
Visualization
12.1-inch multi-touch screen with hardware zone touch trigger.
Integration
7-in-1: Oscilloscope, Logic Analyzer (optional), Protocol Analyzer, WaveGen, DVM, Counter, Frequency Response Analysis.
Voice Control
Multi-language voice control for hands-free operation.
Jitter Analysis
Standard histogram and color grade, optional jitter/real-time eye analysis.
面向最新接口标准的设计与调试，DSOX6002A InfiniiVision 6000 X-Series Oscilloscope: 1 to 6 GHz, 2 Analog Channels 提供行业领先的精度与信号完整性。
