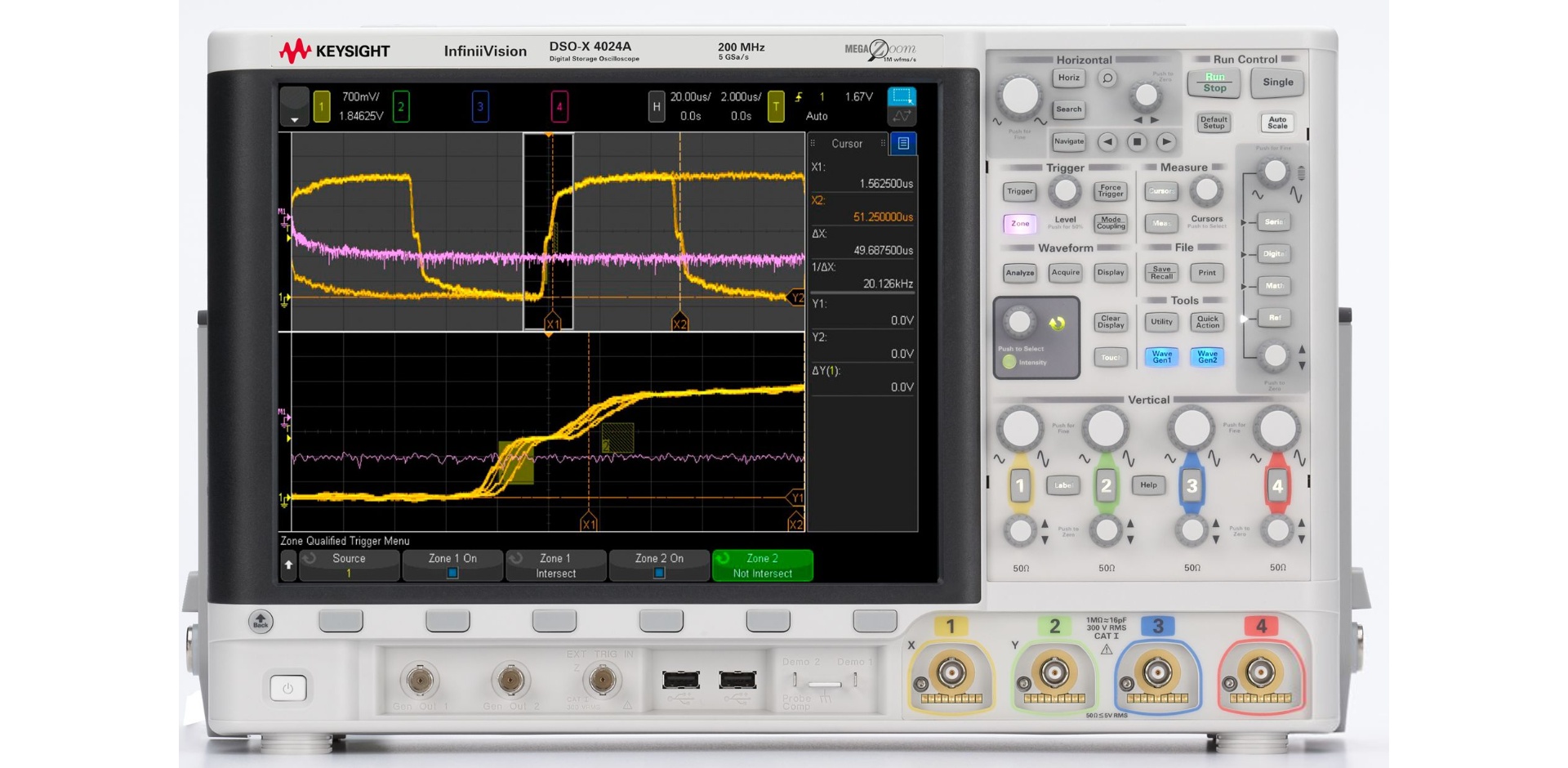

DSOX4024A Oscilloscope: 200 MHz, 4 Analog Channels
面向高阶调试的专业级示波器
200 MHz带宽
4 Analog通道
5 GSa/s采样率
4 Mpts存储深度
渠道分销
快速响应
推荐方案套装
面向验证与调试的示波器场景化配置。
台式基础配置
面向常规调试与验证的基础配置。
适用场景： 研发与台式验证
关键参数
带宽裕量通道数量存储深度
- 主机（DSOX4024A）
- 无源探头（4 支）
- 标准质保与认证
- 校准证书
* 工程师将进行兼容性核查。
详细规格
DSOX4024A 的技术参考
| Bandwidth | 200 MHz |
| Channels | 4 Analog |
| Sample Rate | 5 GSa/s |
| Memory | 4 Mpts |
| Rise Time | ≤ 1.75 ns |
| Memory Depth | 4 Mpts |
| Waveform Update Rate | > 1,000,000 wfms/s |
| Input Impedance | 1 MΩ / 50 Ω |
| Horizontal Range | 2 ns/div to 50 s/div |
| Display | 12.1-inch Capacitive Touch |
产品概览
The InfiniiVision 4000 X-Series boasts a 12.1-inch capacitive touch display and the industry’s only uncompromised > 1,000,000 waveforms/sec update rate.
核心优势
Touch Screen
Large 12.1-inch capacitive touch display for intuitive gesture control.
Fastest Update Rate
> 1,000,000 waveforms/sec update rate revealing infrequent glitches.
Zone Touch Trigger
Simply draw a box on the screen to isolate signal anomalies.
5-in-1 Integration
Oscilloscope, Logic Analyzer, Protocol Analyzer, WaveGen, and DVM.
面向最新接口标准的设计与调试，DSOX4024A Oscilloscope: 200 MHz, 4 Analog Channels 提供行业领先的精度与信号完整性。
