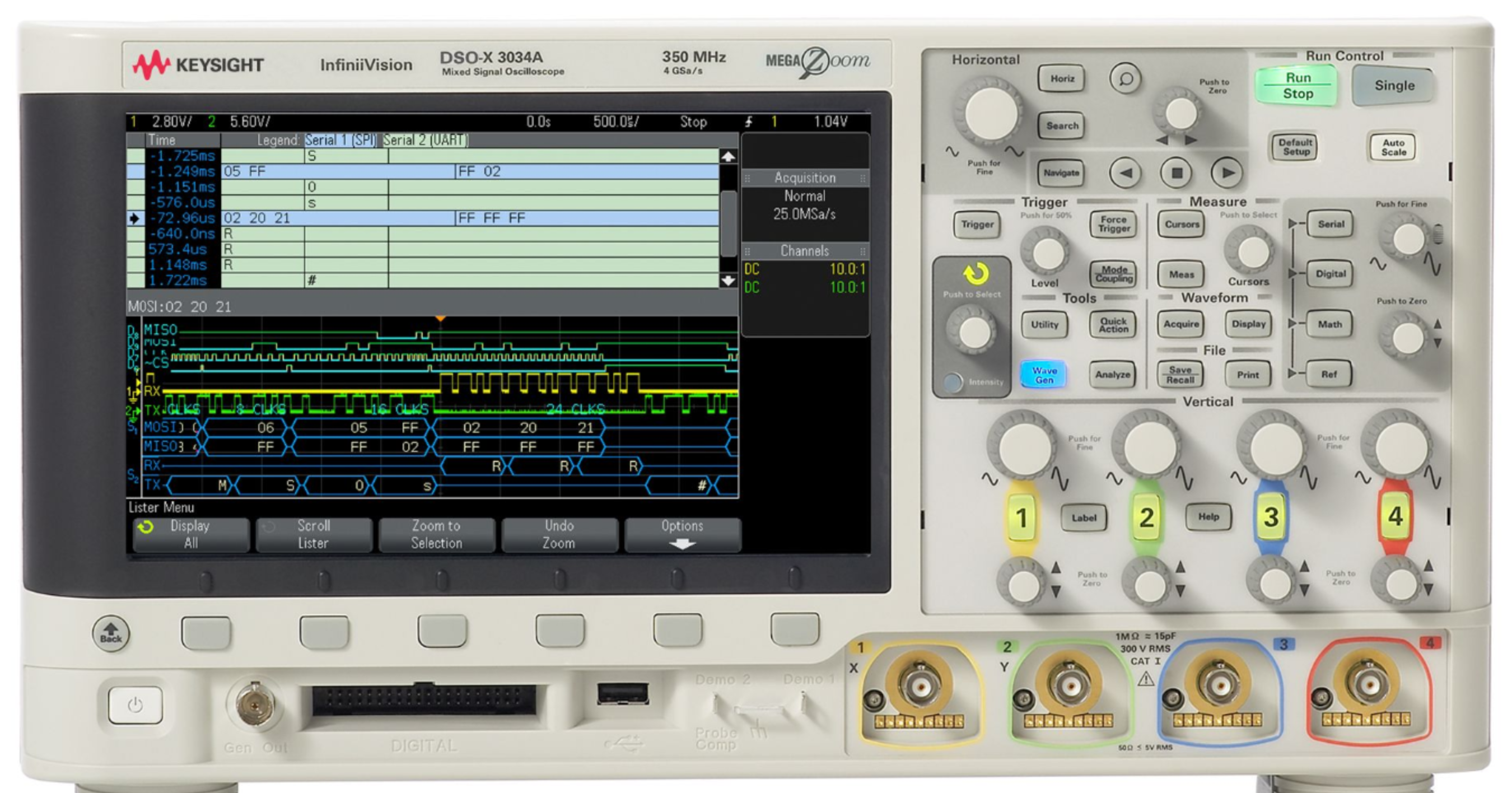

DSOX3034A Oscilloscope: 350 MHz, 4 Channels
面向高阶调试的专业级示波器
350 MHz带宽
4 Analog通道
4 GSa/s采样率
2 Mpts (std), 4 Mpts (opt)存储深度
渠道分销
快速响应
推荐方案套装
面向验证与调试的示波器场景化配置。
台式基础配置
面向常规调试与验证的基础配置。
适用场景： 研发与台式验证
关键参数
带宽裕量通道数量存储深度
- 主机（DSOX3034A）
- 无源探头（4 支）
- 标准质保与认证
- 校准证书
* 工程师将进行兼容性核查。
详细规格
DSOX3034A 的技术参考
| Bandwidth | 350 MHz |
| Channels | 4 Analog |
| Sample Rate | 4 GSa/s |
| Memory | 2 Mpts (std), 4 Mpts (opt) |
| Rise Time | ≤ 1 ns |
| Memory Depth | 2 Mpts (std), 4 Mpts (opt) |
| Waveform Update Rate | > 1,000,000 wfms/s |
| Input Impedance | Selectable 1 MΩ or 50 Ω |
| Horizontal Range | 2 ns/div to 50 s/div |
| Display | 8.5-inch WVGA |
产品概览
The InfiniiVision 3000A X-Series redefined oscilloscopes. It sees the most signal detail, does more functions than any other oscilloscope, and gives you maximum investment protection. The 3000A X-Series’ innovation starts with the industry’s only 6-instruments-in-1 integration, delivering more scope for the same budget with breakthrough technology.
核心优势
Fastest Update Rate
With Keysight’s MegaZoom IV smart memory technology, the 3000 X-Series updates waveforms up to 1 million times per second, providing the highest probability of capturing random and infrequent events.
MegaZoom IV Smart Memory
Enables the industry's fastest update rate while maintaining high responsiveness even with deep memory records, allowing you to see signal detail that other scopes miss.
6-instruments-in-1 Integration
Integrates digital channels (MSO), serial protocol analyzer, WaveGen, 3-digit digital voltmeter, and an 8-digit hardware counter/totalizer.
Largest Display in its Class
Equipped with a large 8.5-inch WVGA display, it offers the best signal visibility to view analog, digital, and serial signals easily on a single screen.
Fully Upgradable
As the industry’s only fully-upgradable family of oscilloscopes, it allows you to upgrade bandwidth (up to 1 GHz), digital channels, and software applications.
面向最新接口标准的设计与调试，DSOX3034A Oscilloscope: 350 MHz, 4 Channels 提供行业领先的精度与信号完整性。
