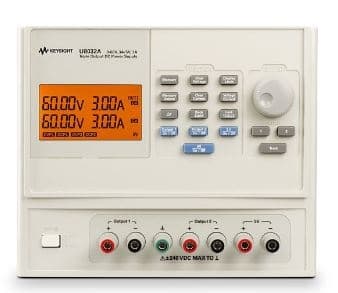

U8032A 三路输出DC Power Supply, 60V/3A (2x) & 5V/3A; 375W (4)
面向高阶调试的专业级示波器
渠道分销
快速响应
推荐方案套装
按场景配置的电源方案。
台式基础配置
通用台式供电配置。
适用场景： 实验室台架
关键参数
电压范围电流范围负载调整率
- 主机（U8032A）
- 远端感测套件
- 机架耳
- 安全线缆
* 工程师将进行兼容性核查。
详细规格
U8032A 的技术参考
| Excellent load and line regulation (CV | < 0.01% + 2 mV; CC |
产品概览
Excellent load and line regulation (CV: < 0.01% + 2 mV; CC: <0.02% + 2 mA)
Fast transient response < 50 µsec
Low output noise ≤ 1 mVrms (0.5 mVrms typical) and ≤ 1 mArms from 20 Hz to 20 MHz
Fully integrated OVP and OCP
Keypad lock feature
Physical lock mechanism
Dual display shows both voltage and current reading
Auto-tracking between output 1 and output 2 with a single control
Multiple channels that can be individually/simultaneously controlled
Output sequencing function automates your test without the need for coding
面向最新接口标准的设计与调试，U8032A 三路输出DC Power Supply, 60V/3A (2x) & 5V/3A; 375W (4) 提供行业领先的精度与信号完整性。
