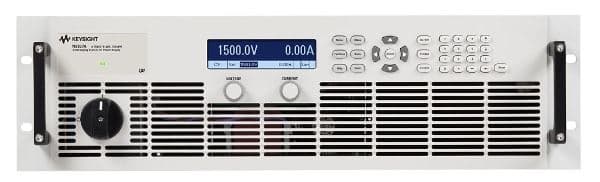

N8937A AutorangingDC Power Supply, 1500 V, 30 A, 15000 W, 208 VAC
面向高阶调试的专业级示波器
推荐方案套装
按场景配置的电源方案。
台式基础配置
通用台式供电配置。
- 主机（N8937A）
- 远端感测套件
- 机架耳
- 安全线缆
* 工程师将进行兼容性核查。
详细规格
N8937A 的技术参考
| Voltage | 0.1% of full-scale |
| Current | 0.2% of full-scale |
| Power | 15000 W |
| Voltage range | 187 - 240 VAC |
产品概览
Voltage: 0 to 1500 V
Current: 0 to 30 A
Power: 15000 W
Voltage range: 187 - 240 VAC
Voltage: 0.1% of full-scale
Current: 0.2% of full-scale
Autoranging output – does the job of multiple power supplies.
5 kW, 10 kW, and 15 kW maximum output power.
Up to 1500 V and up to 510 A.
14 different voltage, current, and power combinations available in 208 VAC or 400 VAC (28 total models).
Just the right amount of performance at just the right price.
Easily parallel units to create “one” power supply with >100 kW of power.
Built-in voltage and current measurement.
High power density, 15 kW in only 3U (5.25” / 13.34 cm).
Protection from over-voltage, over-current, and over-temperature.
LAN (LXI Core), USB, GPIB, and analog interfaces all standard.
面向最新接口标准的设计与调试，N8937A AutorangingDC Power Supply, 1500 V, 30 A, 15000 W, 208 VAC 提供行业领先的精度与信号完整性。
