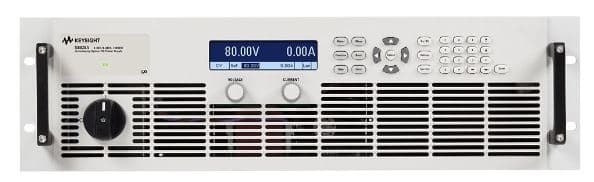

N8925A AutorangingDC Power Supply, 80 V, 340 A, 10000 W, 208 VAC
面向高阶调试的专业级示波器
推荐方案套装
按场景配置的电源方案。
台式基础配置
通用台式供电配置。
- 主机（N8925A）
- 远端感测套件
- 机架耳
- 安全线缆
* 工程师将进行兼容性核查。
详细规格
N8925A 的技术参考
| Voltage | 0.1% of full-scale |
| Current | 0.2% of full-scale |
| Power | 10000 W |
| Voltage range | 187 - 240 VAC |
产品概览
Voltage: 0 to 80 V
Current: 0 to 340 A
Power: 10000 W
Voltage range: 187 - 240 VAC
Voltage: 0.1% of full-scale
Current: 0.2% of full-scale
Autoranging output – does the job of multiple power supplies!
5 kW, 10 kW, and 15 kW maximum output power
Up to 1500 V and up to 510 A
14 different voltage, current, and power combinations available in 208 VAC or 400 VAC (28 total models)
Easily parallel units to create “one” power supply with >100 kW of power
Built-in voltage and current measurement
High power density, 15 kW in only 3U (5.25” / 13.34 cm)
Protection from over-voltage, over-current, and over-temperature
LAN (LXI Core), USB, GPIB, and analog interfaces all standard
面向最新接口标准的设计与调试，N8925A AutorangingDC Power Supply, 80 V, 340 A, 10000 W, 208 VAC 提供行业领先的精度与信号完整性。
