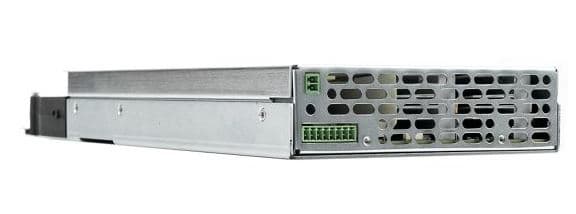

N6785A 适用于电池功耗分析的源表Module, 多量程, 80 W, 倍宽
面向高阶调试的专业级示波器
推荐方案套装
按场景配置的电源方案。
台式基础配置
通用台式供电配置。
- 主机（N6785A）
- 远端感测套件
- 机架耳
- 安全线缆
* 工程师将进行兼容性核查。
详细规格
N6785A 的技术参考
| Voltage | 20 V / 15 V / 10 V / 6 V |
| Current | ± 4 A / ± 5 A / ± 6.7 A / ± 8 A |
| Power | Up to 80 W |
| CV peak-to-peak | 15 mV |
| CVrms | 1.5 mV |
| Voltage, 20 V, 15 V, 10 V, and 6 V ranges | 0.025% + 1.8 mV |
| Current, 4 A, 5 A, 6.7 A, and 8 A ranges | 0.04% + 1.4 mA |
| Voltage, 20 V range | 0.025% 1.8 mV |
| Current, 8 A range | 0.04% + 1.5 mA |
| Current, 100 mA range | 0.025% + 10 µA |
| Current, 1 mA range | 0.025% + 100 nA |
产品概览
Stable, glitch-free sourcing and sinking (charge/eLoad), just like a battery.
Programmable output resistance mimics the battery’s internal resistance.
Characterize your device’s off-, sleep-, and transmit-mode current in one pass and one picture with seamless measurement ranging technology — no need to make multiple measurement sweeps.
Perform battery rundown tests and characterize how your device performs with an actual battery with the SMU’s ammeter (zero-burden current shunt) mode.
Voltage: 20 V / 15 V / 10 V / 6 V
Current: ± 4 A / ± 5 A / ± 6.7 A / ± 8 A
Power: Up to 80 W
CV peak-to-peak: 15 mV
CVrms: 1.5 mV
Voltage, 20 V, 15 V, 10 V, and 6 V ranges: 0.025% + 1.8 mV
Current, 4 A, 5 A, 6.7 A, and 8 A ranges: 0.04% + 1.4 mA
Voltage, 20 V range: 0.025% 1.8 mV
Current, 8 A range: 0.04% + 1.5 mA
Current, 100 mA range: 0.025% + 10 µA
Current, 1 mA range: 0.025% + 100 nA
面向最新接口标准的设计与调试，N6785A 适用于电池功耗分析的源表Module, 多量程, 80 W, 倍宽 提供行业领先的精度与信号完整性。
