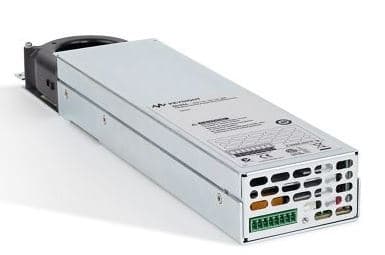

N6784A 4 象限通用源表Module, ±20 V / ±1 A 或 ±6 V / ±3 A, 20 W
面向高阶调试的专业级示波器
推荐方案套装
按场景配置的电源方案。
台式基础配置
通用台式供电配置。
- 主机（N6784A）
- 远端感测套件
- 机架耳
- 安全线缆
* 工程师将进行兼容性核查。
详细规格
N6784A 的技术参考
| Voltage | Up to ±20 V |
| Current | Up to ±3 A |
| Power | 20 W |
| Voltage, 20 V range | 0.025% + 1.2 mV |
| Voltage, 6 V range | 0.025% + 600 µV |
| Current, 3 A and 1 A ranges | 0.04% + 300 µA |
| Current, 10 mA range | 0.25% + 5 µA |
| Current, 3 A range | 0.03% + 250 µA |
| Current, 100 mA range | 0.025% + 10 µA |
| Current 10 µA range | 0.025% + 8 nA |
产品概览
Glitch-free sourcing and measurement ― change output and measurement ranges without any glitches.
4-quadrant operation ― perform as a bipolar voltage or current source or as a bipolar CV or CC electronic load.
Four current programming ranges - precisely source current down µA.
Four current measurement ranges ― precisely capture the current levels of the DUT during different modes of operation.
Excellent transient response ― keep voltage or current stable during high-speed load changes.
Fast modulation of DC ― create waveforms up to 100 kHz to stimulate or load down the DUT.
High-speed digitized measurements ― capture/view the power consumption of the DUT up to every 5 µs with built-in 200 kHz digitizer.
Voltage: Up to ±20 V
Current: Up to ±3 A
Power: 20 W
Voltage, 20 V range: 0.025% + 1.8 mV
Voltage, 6 V range: 0.025% + 600 µV
Current, 3 A and 1 A ranges: 0.04% + 300 µA
Current, 10 mA range: 0.25% + 5 µA
The output voltage can change in 10 µs or at 100 kHz into a resistive load.
Voltage, 20 V range: 0.025% + 1.2 mV
Current, 3 A range: 0.03% + 250 µA
Current, 100 mA range: 0.025% + 10 µA
Current 10 µA range: 0.025% + 8 nA
面向最新接口标准的设计与调试，N6784A 4 象限通用源表Module, ±20 V / ±1 A 或 ±6 V / ±3 A, 20 W 提供行业领先的精度与信号完整性。
