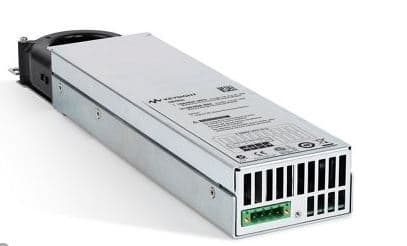

N6783A 2 象限DC Power SupplyModule
面向高阶调试的专业级示波器
推荐方案套装
按场景配置的电源方案。
台式基础配置
通用台式供电配置。
- 主机（N6783A）
- 远端感测套件
- 机架耳
- 安全线缆
* 工程师将进行兼容性核查。
详细规格
N6783A 的技术参考
| • Voltage | 0.05% + 5 mV |
| • Current | -2 A to +3 A |
| • Power | 24 W |
| • Positive Current | 0.1% + 1.8 mA |
| • Negative Current @ -2 A | 0.2% + 1.8 mA |
| • Current high range | 0.1% + 600 µA |
| • Current low range (≤ 150 mA) | 0.1% + 75 µA |
产品概览
The Keysight N6783A-BAT Battery Charge/Discharge Module is a basic, 2-quadrant module designed to be used by battery-powered (mobile) device designers. During the research and development of a mobile device, it is necessary to properly validate the battery that will be used in the final design, especially if the design calls for the battery to be permanently installed. Battery validation requires charging and discharging the battery while making measurements of voltage and current to ensure it meets its specifications and will operate in the device as expected. The N6783A-BAT’s 2-quadrant operation allows it to act as a power supply to charge the battery or as an electronic load to discharge the battery. Its built-in, digitizing measurement system allows accurate measurements over the short and long-term.
The N6783A-BAT can also be used to condition batteries for tests in mobile devices by charging or discharging the battery to a specific level in order to see how the device performs under specific conditions. This allows R&D engineers to understand the real-world operation of their designs during different levels of charge.
Output Ratings
• Voltage: 8 V
• Current: -2 A to +3 A
• Power: 24 W
Programming Accuracy (at 23ºC ±5ºC)
• Voltage: 0.1% + 10 mV
• Positive Current: 0.1% + 1.8 mA
• Negative Current @ -2 A: 0.2% + 1.8 mA
Measurement Accuracy (at 23ºC ±5ºC)
• Voltage: 0.05% + 5 mV
• Current high range: 0.1% + 600 µA
• Current low range (≤ 150 mA): 0.1% + 75 µA
Download BenchVue Basic app for free to control your instruments.
面向最新接口标准的设计与调试，N6783A 2 象限DC Power SupplyModule 提供行业领先的精度与信号完整性。
