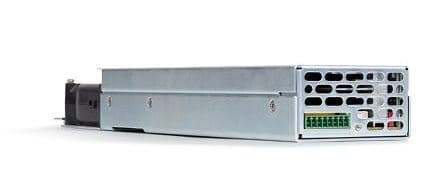

N6782A 适用于功能测试的 2 象限源表Module, 20 V / ±1 A 或 6 V / ±3 A, 20 W
面向高阶调试的专业级示波器
推荐方案套装
按场景配置的电源方案。
台式基础配置
通用台式供电配置。
- 主机（N6782A）
- 远端感测套件
- 机架耳
- 安全线缆
* 工程师将进行兼容性核查。
详细规格
N6782A 的技术参考
| voltage | Up to 20 V |
| current | Up to ±3 A |
| power | 20 W |
| voltage, 20 V range | 0.025% + 1.2 mV* |
| voltage, 6 V range | 0.025% + 600 µV |
| current, 3 A and 1 A ranges | 0.04% + 300 µA |
| current, 300 mA range | 0.03% + 150 µA |
| current, 3 A range | 0.03% + 250 µA* |
| current, 100 mA range | 0.025% + 10 µA* |
| current 10 µA range | 0.025% + 8 nA |
产品概览
voltage: Up to 20 V
current: Up to ±3 A
power: 20 W
voltage, 20 V range: 0.025% + 1.8 mV
voltage, 6 V range: 0.025% + 600 µV
current, 3 A and 1 A ranges: 0.04% + 300 µA
current, 300 mA range: 0.03% + 150 µA
output voltage can change in 10 µs or at 100 kHz into a resistive load
voltage, 20 V range: 0.025% + 1.2 mV*
current, 3 A range: 0.03% + 250 µA*
current, 100 mA range: 0.025% + 10 µA*
current 10 µA range: 0.025% + 8 nA
glitch-free sourcing and measurement ― change output and measurement ranges without any glitches
2-quadrant operation ― perform as a voltage or current source or as a CV or CC electronic load
four current measurement ranges ― precisely capture the current levels of the DUT during different modes of operation
excellent transient response ― keep voltage or current stable during high-speed load changes
fast modulation of DC ― create waveforms up to 100 kHz to stimulate or load down the DUT
high-speed digitized measurements ― capture/view the power consumption of the DUT up to every 5 µs with built-in 200 kHz digitizer
面向最新接口标准的设计与调试，N6782A 适用于功能测试的 2 象限源表Module, 20 V / ±1 A 或 6 V / ±3 A, 20 W 提供行业领先的精度与信号完整性。
