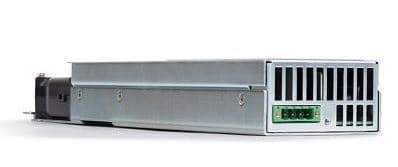

N6731B DC Power SupplyModule 0-5V, 0-10A, 50W
面向高阶调试的专业级示波器
渠道分销
快速响应
推荐方案套装
按场景配置的电源方案。
台式基础配置
通用台式供电配置。
适用场景： 实验室台架
关键参数
电压范围电流范围负载调整率
- 主机（N6731B）
- 远端感测套件
- 机架耳
- 安全线缆
* 工程师将进行兼容性核查。
详细规格
N6731B 的技术参考
| Voltage | 0 to 5 V |
| Current | 0 to 10 A |
| Power | 50 W maximum |
| Voltage programming accuracy | 0.1% + 19 mV |
| Current measurement (readback) accuracy | 0.15% + 20 mA |
| Constant voltage rms | 2 mV |
| Constant voltage peak-to-peak | 10 mv |
| Constant current rms | 8 mA |
| For use with the N6700 Series mainframes [LAN (LXI-C), USB, GPIB] | Low profile MPS or DC Power Analyzer |
| Up-programming and down-programming time with full resistive load (typical) | 20 mS |
产品概览
Voltage: 0 to 5 V
Current: 0 to 10 A
Power: 50 W maximum
Voltage programming accuracy: 0.1% + 19 mV
Current measurement (readback) accuracy: 0.15% + 20 mA
Constant voltage rms: 2 mV
Constant voltage peak-to-peak: 10 mv
Constant current rms: 8 mA
For use with the N6700 Series mainframes [LAN (LXI-C), USB, GPIB] : Low profile MPS or DC Power Analyzer
Up-programming and down-programming time with full resistive load (typical): 20 mS
Over Voltage, over current, and over temperature protection for your device under test
面向最新接口标准的设计与调试，N6731B DC Power SupplyModule 0-5V, 0-10A, 50W 提供行业领先的精度与信号完整性。
