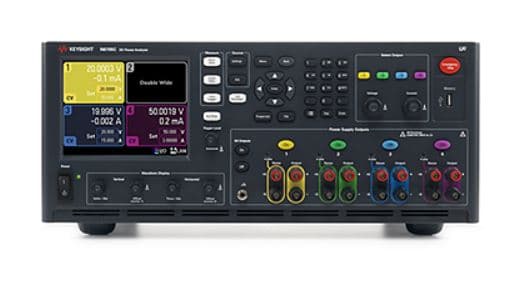

N6705C DC Power Supply分析仪
面向高阶调试的专业级示波器
推荐方案套装
按场景配置的电源方案。
台式基础配置
通用台式供电配置。
- 主机（N6705C）
- 远端感测套件
- 机架耳
- 安全线缆
* 工程师将进行兼容性核查。
详细规格
N6705C 的技术参考
| Ammeter accuracy | Up to 0.025% + 8 nA; up to 18 bits |
| Arbitrary waveform generator function | Bandwidth up to 100 kHz, output power up to 500 W |
| Data logger function | Measurement interval from 20 µs to 60 seconds, with a maximum of 50,000 readings per second |
| Scope function | Digitizes voltage and current up to 200 kHz, 512 kpts; up to 18 bits |
| Voltmeter accuracy | Up to 0.025% + 50 µV; up to 18 bits |
产品概览
Ammeter accuracy: Up to 0.025% + 8 nA; up to 18 bits
Arbitrary waveform generator function: Bandwidth up to 100 kHz, output power up to 500 W
Data logger function: Measurement interval from 20 µs to 60 seconds, with a maximum of 50,000 readings per second
Scope function: Digitizes voltage and current up to 200 kHz, 512 kpts; up to 18 bits
Voltmeter accuracy: Up to 0.025% + 50 µV; up to 18 bits
Use for R&D sourcing to measure DC voltage and current into the DUT.
Operate using dedicated physical controls for common functions.
View complex data with a large color graphics display.
Get flexible programming using GPIB, LAN, USB; LXI compliant.
面向最新接口标准的设计与调试，N6705C DC Power Supply分析仪 提供行业领先的精度与信号完整性。
