E4367A 由 E4360A SAS 主机 + 2 个 E4361A Module组成的配置
面向高阶调试的专业级示波器
推荐方案套装
按场景配置的电源方案。
台式基础配置
通用台式供电配置。
- 主机（E4367A）
- 远端感测套件
- 机架耳
- 安全线缆
* 工程师将进行兼容性核查。
详细规格
E4367A 的技术参考
产品概览
The mainframe contains two E4361A modules:

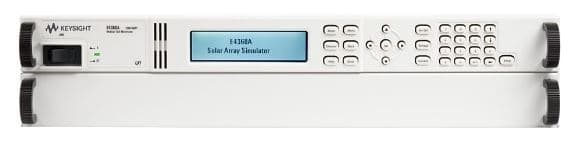

The E4367A is a preconfigured solar array simulator consisting of one E4360A mainframe and two E4361A modules. It is shipped as fully tested and assembled dual output solar array simulator. The Keysight E4361A is a 510W solar array simulator DC power module that simulates the output characteristics of a solar array. The E4361A is primarily a current source with very low output capacitance. It offers fast I-V curve changes allowing you to accurately simulate the output of different solar arrays under various environmental conditions (ex. temperature, age, eclipse, spin etc.).
Additionally, the E4360A SAS mainframe saves valuable rack space with its 2U high size. LAN, USB, and GPIB interfaces are standard. To simplify test system software development, the 14360A System Control Tool software package is shipped free with every E4360A SAS mainframe. This software simplifies the programming and control of multiple SASs. It allows a single function call to setup and control up to 100 E4360 outputs in a SAS system.
The E4360 SAS is available as a standalone off-the-shelf instrument and is also available from Keysight integrated into a full turn key solar array simulator system configured to your exact specification with all the instruments and the software integrated and installed.
面向最新接口标准的设计与调试，E4367A 由 E4360A SAS 主机 + 2 个 E4361A Module组成的配置 提供行业领先的精度与信号完整性。
