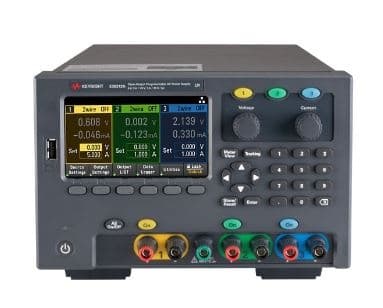

E36312A 80W 三路输出Power Supply, 6V, 5A 和 2X 25V, 1A
面向高阶调试的专业级示波器
渠道分销
快速响应
推荐方案套装
按场景配置的电源方案。
台式基础配置
通用台式供电配置。
适用场景： 实验室台架
关键参数
电压范围电流范围负载调整率
- 主机（E36312A）
- 远端感测套件
- 机架耳
- 安全线缆
* 工程师将进行兼容性核查。
详细规格
E36312A 的技术参考
| Output 1 | 0 to 6 V, 0 to 5 A |
| Output 2 | 0 to 25 V, 0 to 1 A |
| Output 3 | 0 to 25 V, 0 to 1 A |
| Voltage | 0.04% + 2 mV, 0.04% + 5 mV, 0.04% + 5 mV |
| Current | 0.04% + 3 mA, 0.04% + 3 mA, 0.04% + 3 mA |
| Normal Mode Voltage | <350 µVrms/ 2 mV p-p, <350 µV rms/2 mV p-p, <350 µV rms/2 mV p-p |
| Normal-mode current | <2 mA rms, <1 mA rms, <500 µA rms |
| Low Range Current, 20 mA | 0.25% + 80 uA |
产品概览
Output 1: 0 to 6 V, 0 to 5 A
Output 2: 0 to 25 V, 0 to 1 A
Output 3: 0 to 25 V, 0 to 1 A
Voltage: 0.03% + 2 mV, 0.03% + 5 mV, 0.03% + 5 mV
Current: 0.04% + 3 mA, 0.04% + 2 mA, 0.04% + 2 mA
Normal Mode Voltage: <350 µVrms/ 2 mV p-p, <350 µV rms/2 mV p-p, <350 µV rms/2 mV p-p
Normal-mode current: <2 mA rms, <1 mA rms, <500 µA rms
Voltage: 0.04% + 2 mV, 0.04% + 5 mV, 0.04% + 5 mV
Current: 0.04% + 3 mA, 0.04% + 3 mA, 0.04% + 3 mA
Low Range Current, 20 mA: 0.25% + 80 uA
Output 2: 0 to 25 V, 0 to 1 A
Output 3: 0 to 25 V, 0 to 1 A
Voltage: 0.03% + 2 mV, 0.03% + 5 mV, 0.03% + 5 mV
Current: 0.04% + 3 mA, 0.04% + 2 mA, 0.04% + 2 mA
Normal Mode Voltage: <350 µVrms/ 2 mV p-p, <350 µV rms/2 mV p-p, <350 µV rms/2 mV p-p
Normal-mode current: <2 mA rms, <1 mA rms, <500 µA rms
Voltage: 0.04% + 2 mV, 0.04% + 5 mV, 0.04% + 5 mV
Current: 0.04% + 3 mA, 0.04% + 3 mA, 0.04% + 3 mA
Low Range Current, 20 mA: 0.25% + 80 uA
面向最新接口标准的设计与调试，E36312A 80W 三路输出Power Supply, 6V, 5A 和 2X 25V, 1A 提供行业领先的精度与信号完整性。
