E36154AGV DC Power Supply with Scope and Arbitrary Waveform Generator Bundle
面向高阶调试的专业级示波器
渠道分销
快速响应
推荐方案套装
按场景配置的电源方案。
台式基础配置
通用台式供电配置。
适用场景： 实验室台架
关键参数
电压范围电流范围负载调整率
- 主机（E36154AGV）
- 远端感测套件
- 机架耳
- 安全线缆
* 工程师将进行兼容性核查。
详细规格
E36154AGV 的技术参考
产品概览

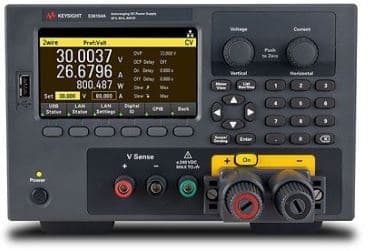

The Keysight E36154AGV consists of a Keysight E36154A DC power supply and a Keysight E36150ADVU with Scope View and arbitrary waveform generation (AWG) capabilities for the Keysight E36150 Series bench power supplies. The E36154A includes single-output and auto-range capabilities, 30 V, 80 A, 800 W, and LAN and USB interfaces.
The AWG enables you to create and simulate complex waveforms with up to 512 setpoints with configurable dwell time. The arbitrary waveforms supported include sine, step, ramp, staircase, pulse, trapezoid, and exponential.
Scope View supports up to 10 us / 100 kHz sampling rate and 256K samples. These capabilities enable a precise analysis of dynamic transient behaviors, including pulses of current loading, peak demands, dropouts, rise times, and other DC transients and disturbances in your device under test.
The AWG enables you to create and simulate complex waveforms with up to 512 setpoints with configurable dwell time. The arbitrary waveforms supported include sine, step, ramp, staircase, pulse, trapezoid, and exponential.
Scope View supports up to 10 us / 100 kHz sampling rate and 256K samples. These capabilities enable a precise analysis of dynamic transient behaviors, including pulses of current loading, peak demands, dropouts, rise times, and other DC transients and disturbances in your device under test.
面向最新接口标准的设计与调试，E36154AGV DC Power Supply with Scope and Arbitrary Waveform Generator Bundle 提供行业领先的精度与信号完整性。
