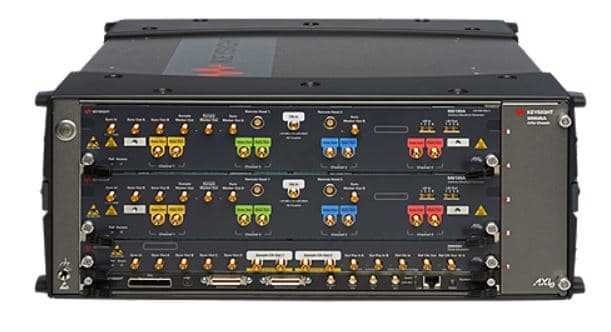

M8199A Arbitrary Waveform Generator
面向高阶调试的专业级示波器
渠道分销
快速响应
推荐方案套装
面向信号仿真与应力测试的 AWG 配置。
波形合成配置
复杂波形生成与确定性时序控制。
适用场景： 信号仿真
关键参数
采样率垂直分辨率存储深度
- 主机（M8199A）
- 高级序列选件
- 同步/触发附件
- 波形库
* 工程师将进行兼容性核查。
详细规格
M8199A 的技术参考
产品概览
Analog bandwidth up to 55 GHz
Continuous sample rate range up to 128 GSa/s for all 4 channels
Synchronization of up to 16 channels across 4 modules (128 GSa/s)
Built-in frequency and phase response calibration for clean output signals
6 bits ENOB, DC to 50 GHz, Fs 100 GSa/s
Intrinsic jitter: < 75 fs
Up to 1.4 Vpp differential output voltage @128 GBd
Transition time (20/80) as low as 5 ps
Channel-to-channel skew adjustment with 25 fs resolution
Synchronization of up to 16 channels across 4 modules
< 140 dBc wideband phase noise > 1 MHz
512 KSa / 1 MSa of waveform memory per channel
4 channels at 128 GSa/s
Provides research engineers a high-performance signal source for arbitrary signals, enabling the development of designs up to 140 GBd
Integrated, ready-to-use instrument
Operates with well-known software, like MATLAB or Keysight IQ Tools and
SCPI programming interface based on M8070B
High flexibility with upgrade options from 2 channels at 128 GSa/s to 4 channels at 128 GSa/s
Continuous sample rate range up to 128 GSa/s for all 4 channels
Synchronization of up to 16 channels across 4 modules (128 GSa/s)
Built-in frequency and phase response calibration for clean output signals
6 bits ENOB, DC to 50 GHz, Fs 100 GSa/s
Intrinsic jitter: < 75 fs
Up to 1.4 Vpp differential output voltage @128 GBd
Transition time (20/80) as low as 5 ps
Channel-to-channel skew adjustment with 25 fs resolution
Synchronization of up to 16 channels across 4 modules
< 140 dBc wideband phase noise > 1 MHz
512 KSa / 1 MSa of waveform memory per channel
4 channels at 128 GSa/s
Provides research engineers a high-performance signal source for arbitrary signals, enabling the development of designs up to 140 GBd
Integrated, ready-to-use instrument
Operates with well-known software, like MATLAB or Keysight IQ Tools and
SCPI programming interface based on M8070B
High flexibility with upgrade options from 2 channels at 128 GSa/s to 4 channels at 128 GSa/s
面向最新接口标准的设计与调试，M8199A Arbitrary Waveform Generator 提供行业领先的精度与信号完整性。
