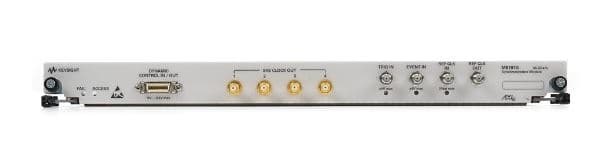

Multi-channel Synchronization Module for M8197A for M8195A
面向高阶调试的专业级示波器
渠道分销
快速响应
推荐方案套装
面向信号仿真与应力测试的 AWG 配置。
波形合成配置
复杂波形生成与确定性时序控制。
适用场景： 信号仿真
关键参数
采样率垂直分辨率存储深度
- 主机（M8197A）
- 高级序列选件
- 同步/触发附件
- 波形库
* 工程师将进行兼容性核查。
详细规格
M8197A 的技术参考
产品概览
one trigger input can trigger up to 4 M8195A modules with a delay accuracy of ±20 ps
skew repeatability of 1 ps between modules independent of sampling rate
skew resolution of 50 fs between modules
multi-lane serial applications
phase coherent multi-channel I / Q signal generation up to 8 I/Q pairs
phase coherent multi-channel IF / RF generation with up to 16 IF / RF signals
physics
MIMO
skew repeatability of 1 ps between modules independent of sampling rate
skew resolution of 50 fs between modules
multi-lane serial applications
phase coherent multi-channel I / Q signal generation up to 8 I/Q pairs
phase coherent multi-channel IF / RF generation with up to 16 IF / RF signals
physics
MIMO
面向最新接口标准的设计与调试，Multi-channel Synchronization Module for M8197A for M8195A 提供行业领先的精度与信号完整性。
