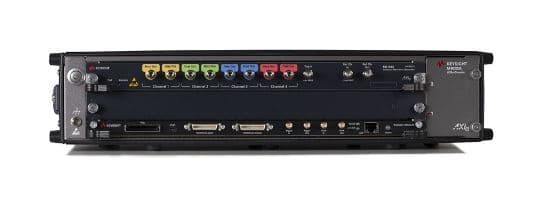

M8196A 92 GSa/s Arbitrary Waveform Generator
面向高阶调试的专业级示波器
92 GSa/s采样率
渠道分销
快速响应
推荐方案套装
面向信号仿真与应力测试的 AWG 配置。
波形合成配置
复杂波形生成与确定性时序控制。
适用场景： 信号仿真
关键参数
采样率垂直分辨率存储深度
- 主机（M8196A）
- 高级序列选件
- 同步/触发附件
- 波形库
* 工程师将进行兼容性核查。
详细规格
M8196A 的技术参考
| Sample Rate | 92 GSa/s |
产品概览
provides a combination of high speed, high bandwidth, and high channel density
high channel density: 1, 2 or 4 channels per AXIe module (number of channels is software upgradeable)
built-in frequency and phase response calibration for clean output signals
external clock in and out
sample rate up to 92 GSa/s, 8-bit vertical resolution
32 GHz analog bandwidth
amplitude up to 1 Vpp (single-ended), 2 Vpp (differential), voltage window -1.0 to +2.5 V
supporting signals up to 64 GBaud and beyond
512 kSa of waveform memory per channel
ultra-low intrinsic jitter
transition times < 9 picoseconds (20% to 80%) with frequency response compensation
multi-functions with M8070A system software for M8000 Series BER test solutions
92 GSa/s sample rate supporting signals up to 64 GBaud on 4 channels in a 1-slot AXIe module simultaneously
Optical communications (LR4, CFP2-ACO, Coherent, etc.) — 4 synchronized channels allow deterministic emulation and pre-distortion of 2 independent I/Q baseband signals up to 64 GBaud
Receiver stress test — particularly for multi-level, multi-channel interfaces (NRZ, PAM4, PAM8, DMT, etc.) up to 64 GBaud
Quantum physics and advanced research — generate any mathematically-defined arbitrary waveforms, ultra-short yet precise pulses, and extremely wideband chirps
Random interference (RI) and sinusoidal interference (SI) — works with M8020A and M8040A modules. Operate with M8070A BER System control software.
high channel density: 1, 2 or 4 channels per AXIe module (number of channels is software upgradeable)
built-in frequency and phase response calibration for clean output signals
external clock in and out
sample rate up to 92 GSa/s, 8-bit vertical resolution
32 GHz analog bandwidth
amplitude up to 1 Vpp (single-ended), 2 Vpp (differential), voltage window -1.0 to +2.5 V
supporting signals up to 64 GBaud and beyond
512 kSa of waveform memory per channel
ultra-low intrinsic jitter
transition times < 9 picoseconds (20% to 80%) with frequency response compensation
multi-functions with M8070A system software for M8000 Series BER test solutions
92 GSa/s sample rate supporting signals up to 64 GBaud on 4 channels in a 1-slot AXIe module simultaneously
Optical communications (LR4, CFP2-ACO, Coherent, etc.) — 4 synchronized channels allow deterministic emulation and pre-distortion of 2 independent I/Q baseband signals up to 64 GBaud
Receiver stress test — particularly for multi-level, multi-channel interfaces (NRZ, PAM4, PAM8, DMT, etc.) up to 64 GBaud
Quantum physics and advanced research — generate any mathematically-defined arbitrary waveforms, ultra-short yet precise pulses, and extremely wideband chirps
Random interference (RI) and sinusoidal interference (SI) — works with M8020A and M8040A modules. Operate with M8070A BER System control software.
面向最新接口标准的设计与调试，M8196A 92 GSa/s Arbitrary Waveform Generator 提供行业领先的精度与信号完整性。
