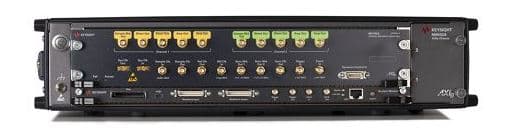

M8190A 12 GSa/s Arbitrary Waveform Generator
面向高阶调试的专业级示波器
12 GSa/s采样率
渠道分销
快速响应
推荐方案套装
面向信号仿真与应力测试的 AWG 配置。
波形合成配置
复杂波形生成与确定性时序控制。
适用场景： 信号仿真
关键参数
采样率垂直分辨率存储深度
- 主机（M8190A）
- 高级序列选件
- 同步/触发附件
- 波形库
* 工程师将进行兼容性核查。
详细规格
M8190A 的技术参考
| Sample Rate | 12 GSa/s |
产品概览
14-bit resolution up to 8 GSa/s
12-bit resolution up to 12 GSa/s
Variable sample rate from 125 MSa/s to 8 / 12 GSa/s
Spurious-free-dynamic range (SFDR) up to 90 dBc typical
Up to 2 GSa arbitrary waveform memory per channel with advanced sequencing
Analog bandwidth up to 5GHz
Up to 90 dBc SFDR - Tones clearly stand out of noise (Even with thousands of tones)
2 GSa memory per channel - Realistic signal scenarios with long playtime
5 GHz analog bandwidth - Mimic analog imperfections with custom ISI
Radar, Satellite, Electronic Warfare, Multilevel Signals
ADC testing (Analog Digital Converter testing), Jitter Margin Testing
Digital Video, Noise Power Ratio Measurement, Wireless HD, HDMI, MHL
IEEE 802.11ad, CaTV, OFDM, Software Defined Radio
Also available as M8190S Multichannel Arbitrary Waveform Generator System. Two multi-channel selections are available:
4-channel system: Consists of one M9505A 5-slot AXIe chassis (M8190S-B04), one M8192A synchronization module, and two M8190A AWG modules, including the required number of clock and trigger cables
8-channel system: Consists of two M9505A 5-slot AXIe chassis (M8190S-B08), one M8192A synchronization module, and four M8190A AWG modules, including the required number of clock and trigger cables
12-bit resolution up to 12 GSa/s
Variable sample rate from 125 MSa/s to 8 / 12 GSa/s
Spurious-free-dynamic range (SFDR) up to 90 dBc typical
Up to 2 GSa arbitrary waveform memory per channel with advanced sequencing
Analog bandwidth up to 5GHz
Up to 90 dBc SFDR - Tones clearly stand out of noise (Even with thousands of tones)
2 GSa memory per channel - Realistic signal scenarios with long playtime
5 GHz analog bandwidth - Mimic analog imperfections with custom ISI
Radar, Satellite, Electronic Warfare, Multilevel Signals
ADC testing (Analog Digital Converter testing), Jitter Margin Testing
Digital Video, Noise Power Ratio Measurement, Wireless HD, HDMI, MHL
IEEE 802.11ad, CaTV, OFDM, Software Defined Radio
Also available as M8190S Multichannel Arbitrary Waveform Generator System. Two multi-channel selections are available:
4-channel system: Consists of one M9505A 5-slot AXIe chassis (M8190S-B04), one M8192A synchronization module, and two M8190A AWG modules, including the required number of clock and trigger cables
8-channel system: Consists of two M9505A 5-slot AXIe chassis (M8190S-B08), one M8192A synchronization module, and four M8190A AWG modules, including the required number of clock and trigger cables
面向最新接口标准的设计与调试，M8190A 12 GSa/s Arbitrary Waveform Generator 提供行业领先的精度与信号完整性。
